2N3584: Transistors Bipolar (BJT) NPN High Power

2N3584 Data Sheet

US $ 4.42~4.79 / Piece | Get Latest Price

Part Number:: 2N3584
Mfg:: Central Semiconductor
Supply Ability:: 5000

Price Break

Qty
0~1
1~25
25~100
100~250

Unit Price
$4.79
$4.7
$4.55
$4.42

Processing time
15 Days
15 Days
15 Days
15 Days

View more price & deliveries

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2025/12/4

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Product Details

Quick Details

Transistor Polarity :	NPN	Collector- Emitter Voltage VCEO Max :	250 V
Emitter- Base Voltage VEBO :	6 V	Maximum DC Collector Current :	2 A
DC Collector/Base Gain hfe Min :	40	Maximum Operating Frequency :	10 MHz
Maximum Operating Temperature :	+ 150 C	Mounting Style :	Stud
Package / Case :	TO-66	Packaging :	Sleeve

Description

Configuration :
Transistor Polarity : NPN
Maximum Operating Temperature : + 150 C
Emitter- Base Voltage VEBO : 6 V
DC Collector/Base Gain hfe Min : 40
Collector- Emitter Voltage VCEO Max : 250 V
Maximum DC Collector Current : 2 A
Maximum Operating Frequency : 10 MHz
Packaging : Sleeve
Mounting Style : Stud
Package / Case : TO-66

Specifications

Ratings	Symbol	2N3584	2N3585	Unit
Collector-Emitter Voltage	V_CEO	250	300	Vdc
Collector-Base Voltage	V_CBO	375	500	Vdc
Collector-Base Voltage	V_CER	300	400	Vdc
Emitter-Base Voltage	V_EBO	6.0		Vdc
Base Current	I_B	1.0		Adc
Collector Current	I_C	2.0		Adc
Total Power Dissipation @ T_A= +25⁰C ⁽¹⁾ @ T_C = +25⁰C ⁽²⁾	P_T	2.5 35		W W
Operating & Storage Junction Temperature Range	T_J, T_stg	-65 to +200		⁰C

THERMAL CHARACTERISTICS

Characteristics	Symbol	Max.	Unit
Thermal Resistance, Junction-to-Case	R_qJC	5.0	⁰C/W

1) Derate linearly @ 14.85 mW/⁰C for T_A > +25⁰C
2) Derate linearly @ 200 mW/⁰C for T_C > +25⁰C

2N3584

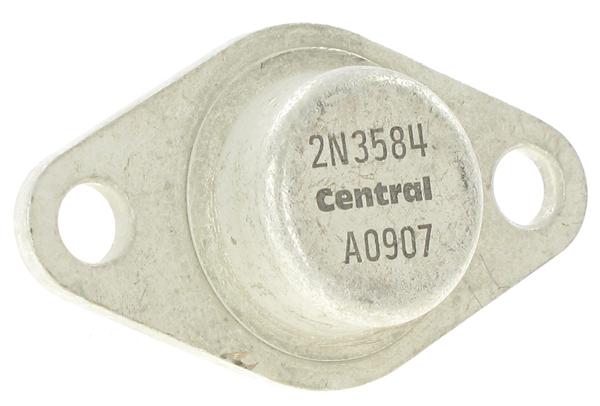

product image
