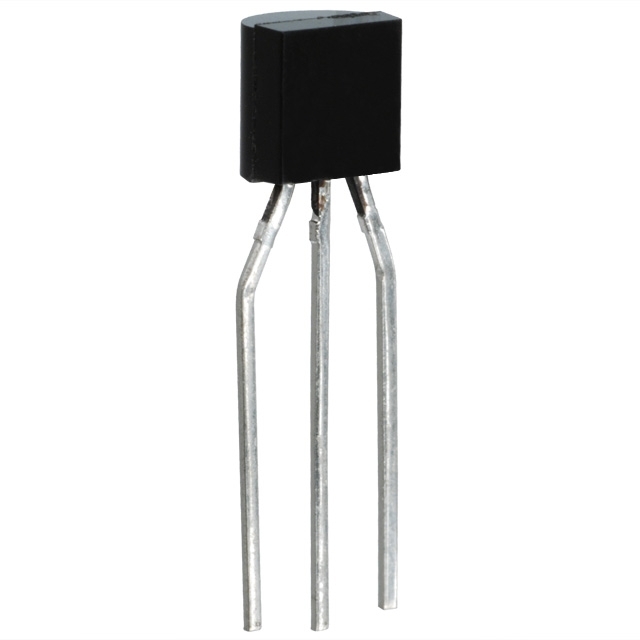

Part Number: 2N3906N
Description: • General small signal application• Switching application
- Table of contents:
2N3906N
-
Suppliers
DataSheet
General Description
2N3906N General Description
• General small signal application
• Switching application
2N3906N Maximum Ratings
| Characteristic | Symbol | Rating | Unit |
| Collector-base voltage | VCBO | -40 | V |
| Collector-emitter voltage | VCEO | -40 | V |
| Emitter-base voltage | VEBO | -5 | V |
| Collector current | IC | -200 | mA |
| Collector power dissipation | PC | 400 | mW |
| Junction temperature | TJ | 150 | |
| Storage temperature range | Tstg | -55~150 |
2N3906N Features
• Low collector-emitter saturation voltage : 0.4V (Max.) @ IC=-50mA, IB=-5mA
• Low collector output capacitance : 4.5pF (Max.) @ VCB=-5V, IE=0, f=1MHz
• Complementary pair with 2N3904N
• Low collector output capacitance : 4.5pF (Max.) @ VCB=-5V, IE=0, f=1MHz
• Complementary pair with 2N3904N
