Purchase 2N3906ZL1G, In-stock 2N3906ZL1G From SeekIC.
MFG:ON Semiconductor Category:Discrete Semiconductor Products
Part Number: 2N3906ZL1G
Category: Discrete Semiconductor Products
MFG: ON Semiconductor
Descriptions: TRANS SS PNP GP 40V 200MA TO-92
- Table of contents:
2N3906ZL1G
-
Suppliers
DataSheet
General Description
2N3906ZL1G General Description
TRANS SS PNP GP 40V 200MA TO-92
2N3906ZL1G Parameters
| Technical/Catalog Information | 2N3906ZL1G |
| Vendor | ON Semiconductor |
| Category | Discrete Semiconductor Products |
| Transistor Type | PNP |
| Voltage - Collector Emitter Breakdown (Max) | 40V |
| Current - Collector (Ic) (Max) | 200mA |
| Power - Max | 625mW |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 100 @ 10mA, 1V |
| Vce Saturation (Max) @ Ib, Ic | 250mV @ 1mA, 10mA |
| Frequency - Transition | 250MHz |
| Current - Collector Cutoff (Max) | 50nA |
| Mounting Type | Through Hole |
| Package / Case | TO-92-3, TO-226AA (Formed Leads) |
| Packaging | Tape & Box (TB) |
| Drawing Number | * |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | 2N3906ZL1G 2N3906ZL1G |
2N3001
PDF/DataSheet Download
- Datasheet: 2N3001
- File Size: 22768 KB
- Manufacturer: CENTRAL [Central Semiconductor Corp]
- Click here to Download
- ·2N3002
- CENTRAL [Central Semiconductor Corp]
- 0.8 to 110 Amperes RMS 15 to 1200 Volts
- 22768 KB
- ·2N3003
- CENTRAL [Central Semiconductor Corp]
- 0.8 to 110 Amperes RMS 15 to 1200 Volts
- 32310 KB
- ·2N3004
- CENTRAL [Central Semiconductor Corp]
- 0.8 to 110 Amperes RMS 15 to 1200 Volts
- 22768 KB
- ·2N3005
- CENTRAL [Central Semiconductor Corp]
- 0.8 to 110 Amperes RMS 15 to 1200 Volts
- 22768 KB
- ·2N3006
- CENTRAL [Central Semiconductor Corp]
- 0.8 to 110 Amperes RMS 15 to 1200 Volts
- 22768 KB
- ·2N3007
- CENTRAL [Central Semiconductor Corp]
- 0.8 to 110 Amperes RMS 15 to 1200 Volts
- 32310 KB
- ·2N3008
- CENTRAL [Central Semiconductor Corp]
- 0.8 to 110 Amperes RMS 15 to 1200 Volts
- 22768 KB
- ·2N3009
- CENTRAL [Central Semiconductor Corp]
- NPN SILICON HIGH SPEED SWITCHING TRANSISTORS
- 81193 KB
2N3906ZL1G Relative Products

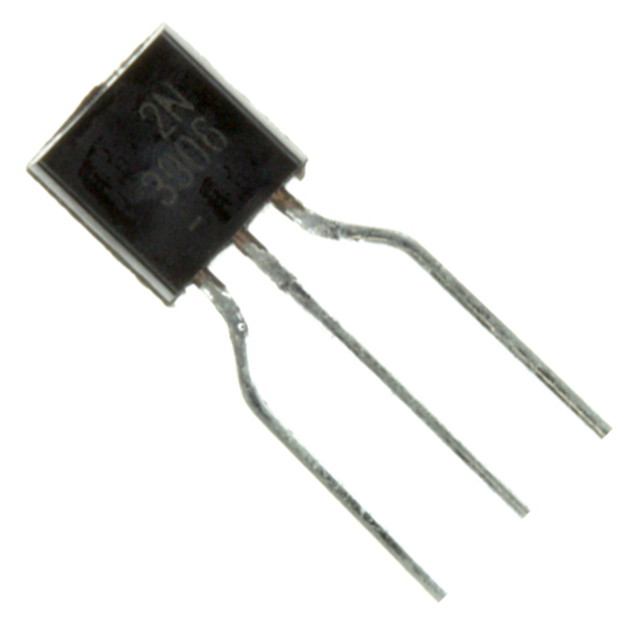

2N3906TFR
