2N4118A

Drain Source Voltage VDS :
Continuous Drain Current :
Transistor Polarity : N-Channel
Configuration : Single
Mounting Style : SMD/SMT
Gate-Source Breakdown Voltage : - 40 V
Packaging : Bulk
Package / Case : TO-206AF
Drain Current (Idss at Vgs=0) : 80 uA


Features:

· Ultra-Low Leakage: 0.2 pA
· Very Low Current/Voltage Operation
· Ultrahigh Input Impedance
· Low Noise




Application

· High-Impedance Transducer
Amplifiers
· Smoke Detector Input
· Infrared Detector Amplifier
· Precision Test Equipment

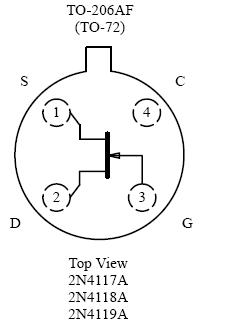

Pinout






Specifications

Gate-Source/Gate-Drain Voltage . . . . . . . . . . . . . . . . . . . . . . 40V
Forward Gate Current . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50 mA
Storage Temperature : (2N Prefix) . . . . . . . . . . .... . . . 65 to 175
(PN, SST Prefix) . . . . . . ........................................... . . 55 to 150
Operating Junction Temperature :
(2N Prefix) . . . . . . . . . . ......................................... . . . 55 to 175
(PN, SST Prefix) . . . . . . . ............................................ . 55 to 150
Lead Temperature (1/16" from case for 10 sec.) . . . . . . . . . . 300
Power Dissipation (case 25) :
(2N Prefix)^a . . . . . . . . . . . . ......................................... . . . . 300 mW
(PN, SST Prefix)^b . . . . . . . . ........................................... . . . 350 mW
Notes
a. Derate 2 mW/ above 25
b. Derate 2.8 mW/above 25




Description

The 2N4118A/PN/SST4117A series of n-channel JFETs provide ultra-high input impedance. These devices are specified with a 1-pA limit and typically operate at 0.2 pA. This makes them perfect choices for use as high-impedance sensitive front-end amplifiers.

The hermetically sealed TO-206AF package of 2N4118A allows full military processing per MIL-S-19500 (see Military Information). The TO-226A (TO-92) plastic package provides a low-cost option. The TO-236 (SOT-23) package provides surface-mount capability. Both the PN and SST series are available in tape-and-reel for automated assembly (see Packaging Information).
