2N5060

SCRs 0.8A 30V

product image

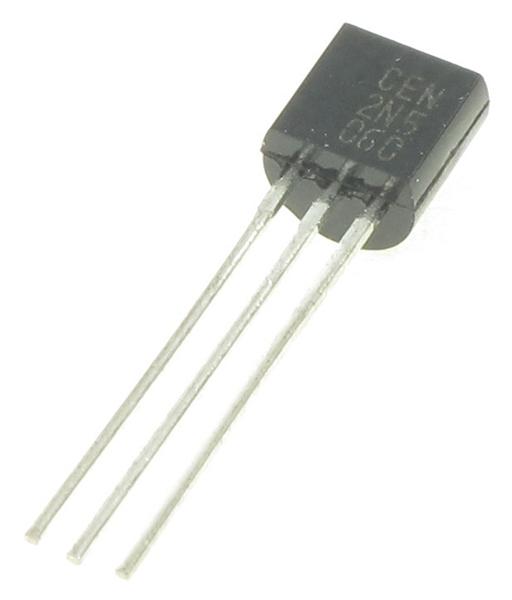

2N5060 Picture
SeekIC No. : 00198115 Detail

2N5060: SCRs 0.8A 30V

floor Price/Ceiling Price

US $ .15~.23 / Piece | Get Latest Price
Part Number:
2N5060
Mfg:
Central Semiconductor
Supply Ability:
5000

Price Break

  • Qty
  • 0~1
  • 1~25
  • 25~100
  • 100~250
  • Unit Price
  • $.23
  • $.19
  • $.16
  • $.15
  • Processing time
  • 15 Days
  • 15 Days
  • 15 Days
  • 15 Days
View more price & deliveries
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/3/28

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Breakover Current IBO Max : 10 A Rated Repetitive Off-State Voltage VDRM : 30 V
Off-State Leakage Current @ VDRM IDRM : 0.01 mA Forward Voltage Drop : 1.7 V
Gate Trigger Voltage (Vgt) : 1.2 V Maximum Gate Peak Inverse Voltage : 5 V
Gate Trigger Current (Igt) : 0.35 mA Holding Current (Ih Max) : 10 mA
Mounting Style : Through Hole Package / Case : TO-92

Description

On-State RMS Current (It RMS) :
Packaging :
Mounting Style : Through Hole
Package / Case : TO-92
Breakover Current IBO Max : 10 A
Forward Voltage Drop : 1.7 V
Maximum Gate Peak Inverse Voltage : 5 V
Off-State Leakage Current @ VDRM IDRM : 0.01 mA
Holding Current (Ih Max) : 10 mA
Rated Repetitive Off-State Voltage VDRM : 30 V
Gate Trigger Voltage (Vgt) : 1.2 V
Gate Trigger Current (Igt) : 0.35 mA


Parameters:

Technical/Catalog Information2N5060
VendorON Semiconductor
CategoryDiscrete Semiconductor Products
SCR TypeSensitive Gate
Voltage - Off State30V
Current - On State (It (RMS) (Max)800mA
Current - On State (It (AV)) (Max)510mA
Current - Gate Trigger (Igt) (Max)200A
Current - Hold (Ih) (Max)5mA
Current - Non Rep. Surge 50, 60Hz (Itsm)10A @ 60Hz
Voltage - Gate Trigger (Vgt) (Max)800mV
Mounting TypeThrough Hole
Package / CaseTO-92-3, TO-226AA (Straight Leads)
PackagingBulk
Drawing Number*
Lead Free StatusContains Lead
RoHS StatusRoHS Non-Compliant
Other Names 2N5060
2N5060
2N5060OS ND
2N5060OSND
2N5060OS
