Purchase 2N5089TFR, In-stock 2N5089TFR From SeekIC.

MFG:Fairchild Semiconductor  Category:Discrete Semiconductor Products

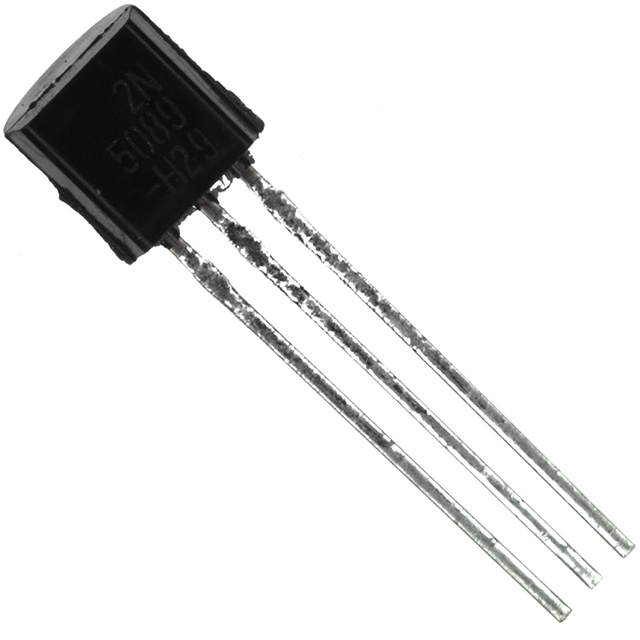

2N5089TFR

2N5 Series Datasheet download

Five Points

Part Number: 2N5089TFR

Category: Discrete Semiconductor Products

MFG: Fairchild Semiconductor





Descriptions: TRANSISTOR NPN 25V 100MA TO-92

Price Break

2000

Unit Price

.02430

Extended Price

48.60

(All prices are in USD) Prices for reference only
Urgent Purchase

2N5089TFR General Description

TRANSISTOR NPN 25V 100MA TO-92

2N5089TFR Parameters

Technical/Catalog Information2N5089TFR
VendorFairchild Semiconductor
CategoryDiscrete Semiconductor Products
Transistor TypeNPN
Voltage - Collector Emitter Breakdown (Max)25V
Current - Collector (Ic) (Max)100mA
Power - Max625mW
DC Current Gain (hFE) (Min) @ Ic, Vce400 @ 100A, 5V
Vce Saturation (Max) @ Ib, Ic500mV @ 1mA, 10mA
Frequency - Transition50MHz
Current - Collector Cutoff (Max)-
Mounting TypeThrough Hole
Package / CaseTO-92
PackagingTape & Reel (TR)
Drawing Number*
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names 2N5089TFR
2N5089TFR
