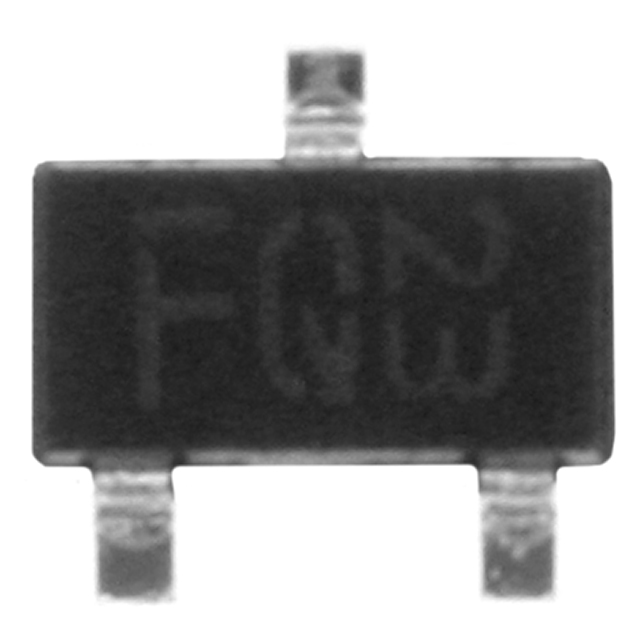

See larger image

SeekIC No. : 00206559 Detail

2SA1037AKT146S: Transistors Bipolar (BJT) PNP 50V 0.15A

2SA1037AKT146S Data Sheet

US $ .05~.22 / Piece | Get Latest Price

Part Number:: 2SA1037AKT146S
Mfg:: ROHM Semiconductor
Supply Ability:: 5000

Price Break

Qty
0~1
1~25
25~100
100~500

Unit Price
$.22
$.12
$.08
$.05

Processing time
15 Days
15 Days
15 Days
15 Days

View more price & deliveries

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2025/12/4

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

2SA1006 evaluate
Application·Audio frequency power amplifier·High frequency power amplifierSpecifications SY...
2SA1006A evaluate
Application·Audio frequency power amplifier·High frequency power amplifierSpecifications SY...
2SA1006B evaluate
Application·Audio frequency power amplifier·High frequency power amplifierSpecifications SY...

Product Details

Quick Details

Transistor Polarity :	PNP	Collector- Emitter Voltage VCEO Max :	- 50 V
Emitter- Base Voltage VEBO :	- 6 V	Maximum DC Collector Current :	0.15 A
DC Collector/Base Gain hfe Min :	120	Configuration :	Single
Maximum Operating Frequency :	140 MHz	Maximum Operating Temperature :	+ 150 C
Mounting Style :	SMD/SMT	Package / Case :	SOT-346
Packaging :	Reel

Description

Configuration : Single
Maximum Operating Temperature : + 150 C
Mounting Style : SMD/SMT
Packaging : Reel
Transistor Polarity : PNP
Collector- Emitter Voltage VCEO Max : - 50 V
Emitter- Base Voltage VEBO : - 6 V
DC Collector/Base Gain hfe Min : 120
Maximum DC Collector Current : 0.15 A
Maximum Operating Frequency : 140 MHz
Package / Case : SOT-346

Parameters:

Technical/Catalog Information	2SA1037AKT146S
Vendor	Rohm Semiconductor
Category	Discrete Semiconductor Products
Transistor Type	PNP
Voltage - Collector Emitter Breakdown (Max)	50V
Current - Collector (Ic) (Max)	150mA
Power - Max	200mW
DC Current Gain (hFE) (Min) @ Ic, Vce	270 @ 1mA, 6V
Vce Saturation (Max) @ Ib, Ic	500mV @ 5mA, 50mA
Frequency - Transition	140MHz
Current - Collector Cutoff (Max)	-
Mounting Type	Surface Mount
Package / Case	SC-59-3, SMT3, SOT-346, TO-236
Packaging	Tape & Reel (TR)
Drawing Number	*
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	2SA1037AKT146S 2SA1037AKT146S
