Purchase 2SA1204-Y(TE12L,CF, In-stock 2SA1204-Y(TE12L,CF From SeekIC.

MFG:Toshiba  Category:Discrete Semiconductor Products

2SA1204-Y(TE12L,CF

2SA Series Datasheet download

Five Points

Part Number: 2SA1204-Y(TE12L,CF

Category: Discrete Semiconductor Products

MFG: Toshiba





Descriptions: TRANSISTOR PNP 30V 0.8A SC-62

Price Break

1000

Unit Price

.16093

Extended Price

160.93

(All prices are in USD) Prices for reference only
Urgent Purchase

2SA1204-Y(TE12L,CF General Description

TRANSISTOR PNP 30V 0.8A SC-62

2SA1204-Y(TE12L,CF Parameters

Technical/Catalog Information2SA1204-Y(TE12L,CF
VendorToshiba
CategoryDiscrete Semiconductor Products
Transistor TypePNP
Voltage - Collector Emitter Breakdown (Max)30V
Current - Collector (Ic) (Max)800mA
Power - Max1W
DC Current Gain (hFE) (Min) @ Ic, Vce100 @ 100mA, 1V
Vce Saturation (Max) @ Ib, Ic700mV @ 20mA, 500mA
Frequency - Transition120MHz
Current - Collector Cutoff (Max)-
Mounting TypeSurface Mount

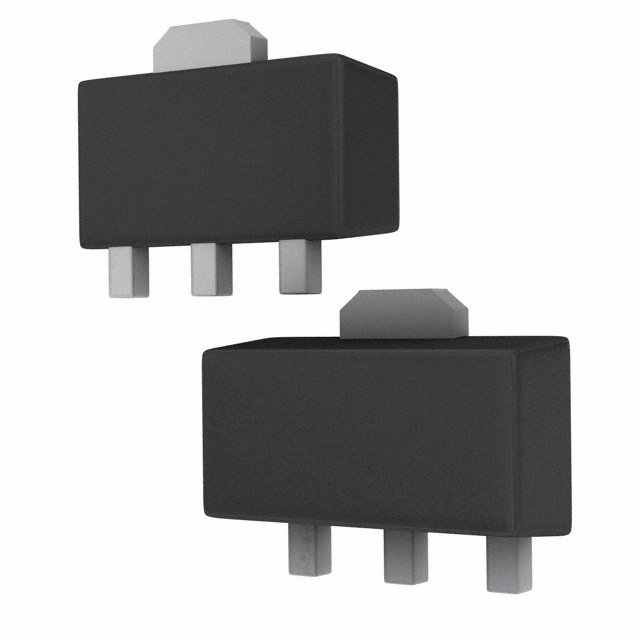

Package / CaseSC-62, SOT-89, MPT3 (3 leads + Tab)
PackagingTape & Reel (TR)
Drawing Number*
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names 2SA1204 Y TE12L,CF
2SA1204YTE12L,CF
