Features: · Fast switching speed.· Low collector saturation voltage.· High gain-bandwidth product.· Small collector capacitacne.· Small-sized package permitting the 2SA1764-applied sets to be made small and slim.· Complementary pair with th 2SC4453.PinoutSpecifications Parameter Symbol Co...

See larger image

SeekIC No. : 004220237 Detail

2SA1764: Features: · Fast switching speed.· Low collector saturation voltage.· High gain-bandwidth product.· Small collector capacitacne.· Small-sized package permitting the 2SA1764-applied sets to be made s...

2SA1764 Data Sheet

Get Latest Price

Part Number:: 2SA1764
Supply Ability:: 5000

Price Break

Qty
1~5000

Unit Price
Negotiable

Processing time
15 Days

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/4/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

2SA1006 evaluate
Application·Audio frequency power amplifier·High frequency power amplifierSpecifications SY...
2SA1006A evaluate
Application·Audio frequency power amplifier·High frequency power amplifierSpecifications SY...
2SA1006B evaluate
Application·Audio frequency power amplifier·High frequency power amplifierSpecifications SY...

Product Details

Description

Features:

· Fast switching speed.
· Low collector saturation voltage.
· High gain-bandwidth product.
· Small collector capacitacne.
· Small-sized package permitting the 2SA1764-applied sets to be made small and slim.
· Complementary pair with th 2SC4453.

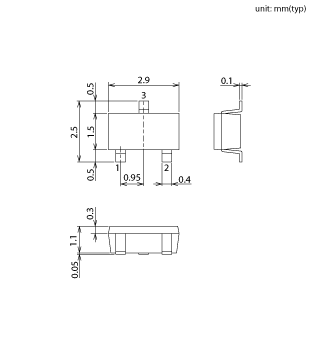

Pinout

Specifications

Parameter	Symbol	Conditions	Ratings	Unit
Collector-base voltage	V_CBO		-15	V
Collector-emitter voltage	V_CEO		-15	V
Emitter-base voltage	V_EBO		-5	V
Collector current	Ic		-200	mA
Collector Current (Pulse)	I_CP		-500	A
Base Current	I_B		-40	mA
Collector Dissipation	P_C		200	mW
Junction temperature	T_j		150	°C
Storage temperature	T_stg		-55 to +150	°C

Absolute maximum ratings
VCEO [V]	15
IC [A]	0.2
PC [W]	0.2

Electrical characteristics
hFE min	50
hFE max	140
VCE [V]	1
IC [mA]	10
VCE (sat) max [V]	0.2
IC [mA]	10
IB [mA]	1
ton *tr [ns]	11
tstg typ [ns]	21
tf *toff [ns]	19*
