Transistors Bipolar (BJT) PNP 50V 3A

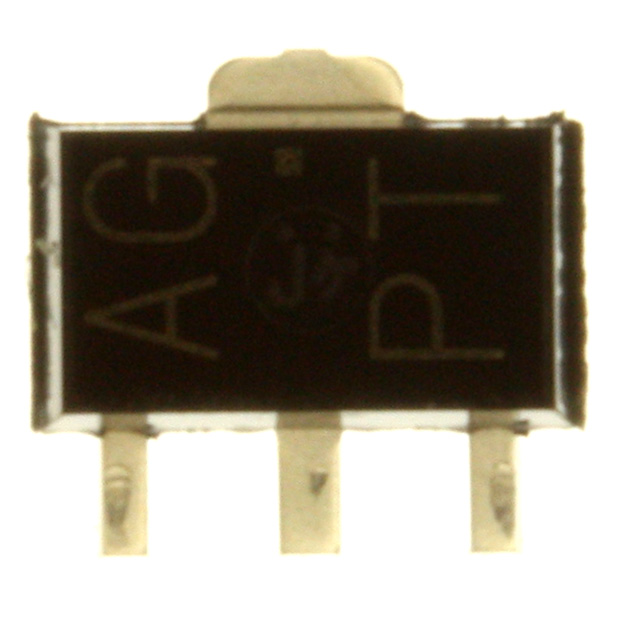

2SA1797T100Q: Transistors Bipolar (BJT) PNP 50V 3A
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.
Transistor Polarity : | PNP | Collector- Emitter Voltage VCEO Max : | - 50 V |
Emitter- Base Voltage VEBO : | - 6 V | Maximum DC Collector Current : | - 5 A |
DC Collector/Base Gain hfe Min : | 82 | Configuration : | Single |
Maximum Operating Frequency : | 200 MHz | Maximum Operating Temperature : | + 150 C |
Mounting Style : | Through Hole | Package / Case : | MPT-3 |
Packaging : | Reel |
The 2SA1797T100Q is one member of the 2SA1797 series.Application circuit diagrams and circuit constants contained herein are shown as examples of standard use and operation. Please pay careful attention to the peripheral conditions when designing circuits and deciding upon circuit constants in the set.
Features of the 2SA1797T100Q are:(1)low saturation voltage. VCE (sat) =-0.35V (Max.) at IC / IB = -1A /-50mA; (2)excellent DC current gain characteristics; (3)complements the 2SA1797 and 2SC4672.The contents described herein are subject to change without notice. The specifications for the product described in this document are for reference only. Upon actual use, therefore, please request that specifications to be separately delivered.
The absolute maximum ratings of the 2SA1797T100Q can be summarized as:(1)collector-base voltage:-50 V;(2)collector-emitter voltage:-50V;(3)collector current:-3A;(4)collector power dissipation:0.5W;(5)junction temperature range:150;(6)storage temperature:-55 to 150.Any data, including, but not limited to application circuit diagrams information, described herein are intended only as illustrations of such devices and not as the specifications for such devices. ROHM CO.,LTD. disclaims any warranty that any use of such devices shall be free from infringement of any third party's intellectual property rights or other proprietary rights, and further, assumes no liability of whatsoever nature in the event of any such infringement, or arising from or connected with or related to the use of such devices.Upon the sale of any such devices, other than for buyer's right to use such devices itself, resell or otherwise dispose of the same, no express or implied right or license to practice or commercially exploit any intellectual property rights or other proprietary rights owned or controlled by ROHM CO., LTD. is granted to any such buyer.
At present there is not too much information about this model.If you are willing to find more about 2SA1797T100Q, please pay attention to our web! We will promptly update the relevant information.
Technical/Catalog Information | 2SA1797T100Q |
Vendor | Rohm Semiconductor(VA) |
Category | Discrete Semiconductor Products |
Transistor Type | PNP |
Voltage - Collector Emitter Breakdown (Max) | 50V |
Current - Collector (Ic) (Max) | 3A |
Power - Max | 500mW |
DC Current Gain (hFE) (Min) @ Ic, Vce | 20 @ 500mA, 2V |
Vce Saturation (Max) @ Ib, Ic | 350mV @ 50mA, 1A |
Frequency - Transition | 200MHz |
Current - Collector Cutoff (Max) | - |
Mounting Type | Surface Mount |
Package / Case | SC-62, SOT-89, MPT3 (3 leads + Tab) |
Packaging | Digi-Reel? |
Drawing Number | * |
Lead Free Status | Lead Free |
RoHS Status | RoHS Compliant |
Other Names | 2SA1797T100Q 2SA1797T100Q 2SA1797T100QDKR ND 2SA1797T100QDKRND 2SA1797T100QDKR |
