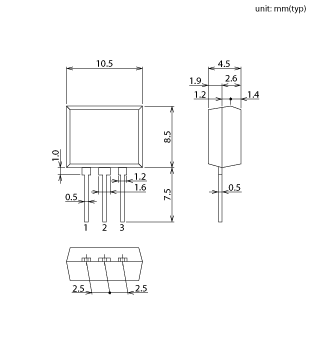

Features: · Low collector-to-emitter saturation voltage.· High Gain-Bandwidth Product.· Excellent linearity of DC Current Gain.· Fast switching speed.Application· Relay drivers, high-speed inverters, converters, and other general high-current switching applications.PinoutSpecifications ...
2SA1825: Features: · Low collector-to-emitter saturation voltage.· High Gain-Bandwidth Product.· Excellent linearity of DC Current Gain.· Fast switching speed.Application· Relay drivers, high-speed inverters...
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.
DescriptionThe 2SA1084EGTR is one member of the 2SA1084 family. they are Silicon PNP Epitaxial. ...
Absolute maximum ratings | |
---|---|
VCEO [V] | 50 |
IC [A] | 8 |
PC [W] | 1.5 |
Electrical characteristics | |
---|---|
hFE min | 100 |
hFE max | 400 |
VCE [V] | 2 |
IC [A] | 0.5 |
VCE (sat) typ [V] | 0.25 |
VCE (sat) max [V] | 0.5 |
IC [A] | 4 |
IB [mA] | 200 |
Parameter |
Symbol |
Conditions |
Ratings |
Unit |
Collector-base voltage |
VCBO |
()60 |
V | |
Collector-emitter voltage |
VCEO |
()50 |
V | |
Emitter-base voltage |
VEBO |
()6 |
V | |
Collector current |
Ic |
()8 |
A | |
Collector Current (Pulse) |
ICP |
()12 |
A | |
Base Current |
IB |
()2 |
A | |
Collector Dissipation |
PC |
1.5 |
W | |
Junction temperature |
Tj |
150 |
°C | |
Storage temperature |
Tstg |
-55 to +150 |
°C |
