2SA1980U suppliers, 2SA1980U price trend, 2SA1980U PDF download, circuit diagram from SeekIC

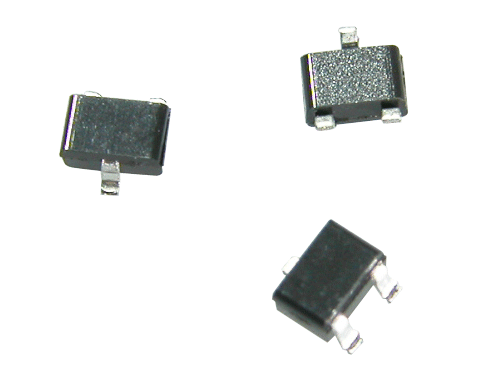

Purchase 2SA1980U, In-stock 2SA1980U From SeekIC.

MFG:AUK D/C:06+

Five Points

MFG: AUK

D/C: 06+

Description: • General small signal amplifier

• General small signal amplifier

Characteristic	Symbol	Rating	Unit
Collector-Base Voltage	V_CBO	-50	V
Collector-Emitter Voltage	V_CEO	-50	V
Emitter-Base voltage	V_EBO	-5	V
Collector Current (DC)	I_C	-150	mA
Collector Dissipation	P_C	200	mW
Junction Temperature	T_j	150
Storage Temperature	T_stg	-55~150

• Low collector saturation voltage : V_CE(sat)=-0.3V(Max.)
• Low output capacitance : C_ob=4pF(Typ.)
• Complementary pair with 2SC5343U

2SA1980UF
PDF/DataSheet Download
