Purchase 2SA1980UF, In-stock 2SA1980UF From SeekIC.

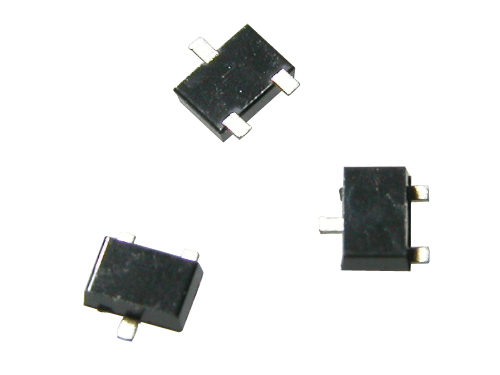

MFG:AUK Package Cooled:SOT-323
- Table of contents:
2SA1980UF
-
Suppliers
DataSheet
General Description
2SA1980UF Maximum Ratings
| SYMBOL | PARAMETER | RATING | UNIT |
| VCBO | Collector to base voltage | -50 | V |
| VCEO | Collector to emitter voltage | -50 | V |
| VEBO | Emitter to base voltage | -5 | V |
| IC | Collector current | -150 | mA |
| PC | Collector dissipation | 200 | mW |
| Tj | Junction temperature | 150 | |
| Tstg | Storage temperaturerange | -55 to +150 |
2SA1980UF Features
·Low collector saturation voltage.
·Low output capacitance.
·Low output capacitance.
2SA1980UF
PDF/DataSheet Download
- Datasheet: 2SA1980UF
- File Size: 230617 KB
- Manufacturer: AUK [AUK corp]
- Click here to Download
