Purchase 2SB1243TV2R, In-stock 2SB1243TV2R From SeekIC.

MFG:Rohm Semiconductor  Category:Discrete Semiconductor Products

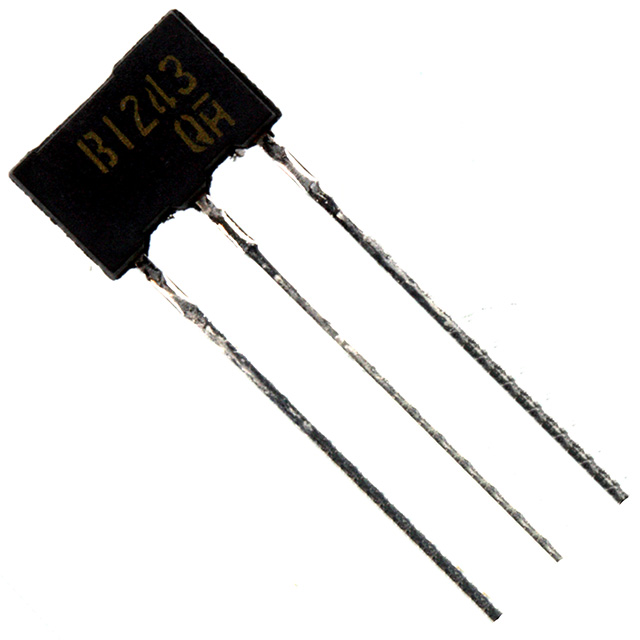

2SB1243TV2R

2SB Series Datasheet download

Five Points

Part Number: 2SB1243TV2R

Category: Discrete Semiconductor Products

MFG: Rohm Semiconductor





Descriptions: TRANS PNP 50V 3A ATV

Price Break

2500
5000
10000
25000
50000
100000

Unit Price

.29400
.27800
.26800
.25800
.25200
.24700

Extended Price

735.00
1390.00
2680.00
6450.00
12600.00
24700.00

(All prices are in USD) Prices for reference only
Urgent Purchase

2SB1243TV2R General Description

TRANS PNP 50V 3A ATV

2SB1243TV2R Parameters

Technical/Catalog Information2SB1243TV2R
VendorRohm Semiconductor
CategoryDiscrete Semiconductor Products
Transistor TypePNP
Voltage - Collector Emitter Breakdown (Max)50V
Current - Collector (Ic) (Max)3A
Power - Max1W
DC Current Gain (hFE) (Min) @ Ic, Vce180 @ 500mA, 3V
Vce Saturation (Max) @ Ib, Ic1V @ 200mA, 2A
Frequency - Transition70MHz
Current - Collector Cutoff (Max)-
Mounting TypeThrough Hole
Package / CaseATV
PackagingTape & Box (TB)
Drawing Number*
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names 2SB1243TV2R
2SB1243TV2R
2SB1243TV2RTB ND
2SB1243TV2RTBND
2SB1243TV2RTB
