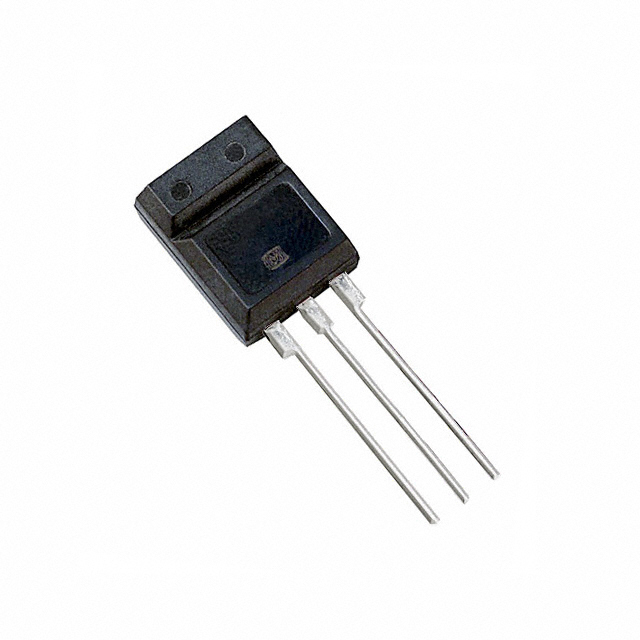

2SB1417APA: TRANS PNP LF 80VCEO 3A MT-4

2SB1417APA Data Sheet

US $ .39~.71 / Piece | Get Latest Price

Part Number:: 2SB1417APA
Mfg:
Supply Ability:: 5000

Price Break

Qty
0~1
1~25
25~100
100~250
250~500

Unit Price
$.71
$.56
$.51
$.44
$.39

Processing time
15 Days
15 Days
15 Days
15 Days
15 Days

View more price & deliveries

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2025/12/4

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

2SB1000 evaluate
Application Low FREQUENCY POWER AMPLIFIER Complementary pair with 2SD1366 Specifications It...
2SB1000A evaluate
Application Low FREQUENCY POWER AMPLIFIER Complementary pair with 2SD1366A Specifications I...
2SB1001 evaluate
Application· Low frequency power amplifier· Complementary pair with 2SD1367Specifications P...

Product Details

Quick Details

Series:	-	Manufacturer:	Panasonic Electronic Components - Semiconductor Products
Transistor Type:	PNP	Current - Collector (Ic) (Max):	3A
Voltage - Collector Emitter Breakdown (Max):	80V	Resistor - Base (R1) (Ohms):	-
Capacitance :	300 pF	Vce Saturation (Max) @ Ib, Ic:	1.2V @ 375mA, 3A
Current - Collector Cutoff (Max):	100µA	Resistor - Emitter Base (R2) (Ohms):	-
DC Current Gain (hFE) (Min) @ Ic, Vce:	120 @ 1A, 4V	Power - Max:	2W
Frequency - Transition:	30MHz	Mounting Type:	Through Hole
Package / Case:	3-SIP	Supplier Device Package:	MT-4-A1

Description

Series: -
Resistor - Base (R1) (Ohms): -
Resistor - Emitter Base (R2) (Ohms): -
Transistor Type: PNP
Voltage - Collector Emitter Breakdown (Max): 80V
Mounting Type: Through Hole
Packaging: Cut Tape (CT)
Manufacturer: Panasonic Electronic Components - Semiconductor Products
Current - Collector Cutoff (Max): 100µA
Package / Case: 3-SIP
Current - Collector (Ic) (Max): 3A
Power - Max: 2W
Vce Saturation (Max) @ Ib, Ic: 1.2V @ 375mA, 3A
Frequency - Transition: 30MHz
Supplier Device Package: MT-4-A1
DC Current Gain (hFE) (Min) @ Ic, Vce: 120 @ 1A, 4V
