2SB1628 Selling Leads, Price trend, 2SB1628 DataSheet download, circuit diagram from SeekIC.com

Features: ·High current capacitance.·Low collector saturation voltage.Specifications Parameter Symbol Rating Unit Collector to Base Voltage VCBO -20 V Collector to Emitter Voltage VCEO -16 V Emitter to Base Voltage VEBO -6 V Collector Current (DC) IC(DC) -3 A Col...

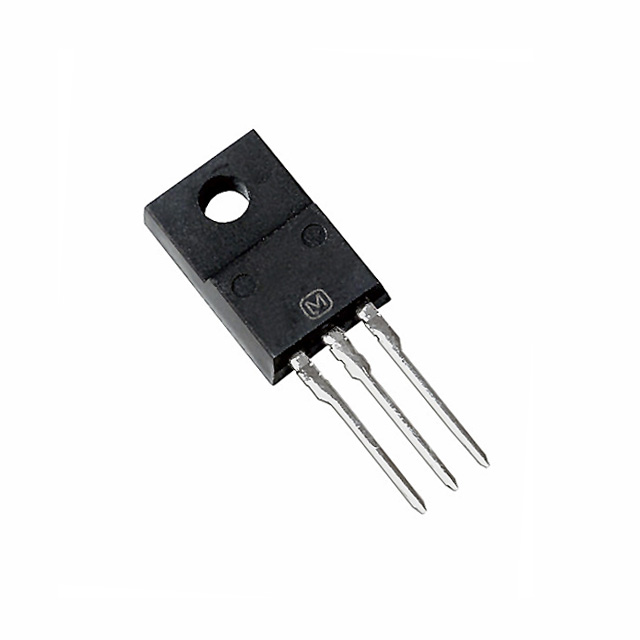

See larger image

SeekIC No. : 004221166 Detail

2SB1628: Features: ·High current capacitance.·Low collector saturation voltage.Specifications Parameter Symbol Rating Unit Collector to Base Voltage VCBO -20 V Collector to Emitter Voltage ...

2SB1628 Data Sheet

Get Latest Price

Part Number:: 2SB1628
Supply Ability:: 5000

Price Break

Qty
1~5000

Unit Price
Negotiable

Processing time
15 Days

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/5/3

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

2SB1000 evaluate
Application Low FREQUENCY POWER AMPLIFIER Complementary pair with 2SD1366 Specifications It...
2SB1000A evaluate
Application Low FREQUENCY POWER AMPLIFIER Complementary pair with 2SD1366A Specifications I...
2SB1001 evaluate
Application· Low frequency power amplifier· Complementary pair with 2SD1367Specifications P...

Product Details

Description

Features:

·High current capacitance.
·Low collector saturation voltage.

Specifications

Parameter	Symbol	Rating	Unit
Collector to Base Voltage	V_CBO	-20	V
Collector to Emitter Voltage	V_CEO	-16	V
Emitter to Base Voltage	V_EBO	-6	V
Collector Current (DC)	I_C(DC)	-3	A
Collector Current (pulse) *	I_c(Pulse)	-5	A
Base Current (DC)	I_B(DC)	-0.2	A
Base Current (pulse) *	I_B(Pulse)	-0.4	A
Total Power Dissipation *	P_T	2	W
Junction Temperature	T_j	150
Storage temperature	T_stg	-55 to +150

* PW 10 ms, Duty Cycle 50%
