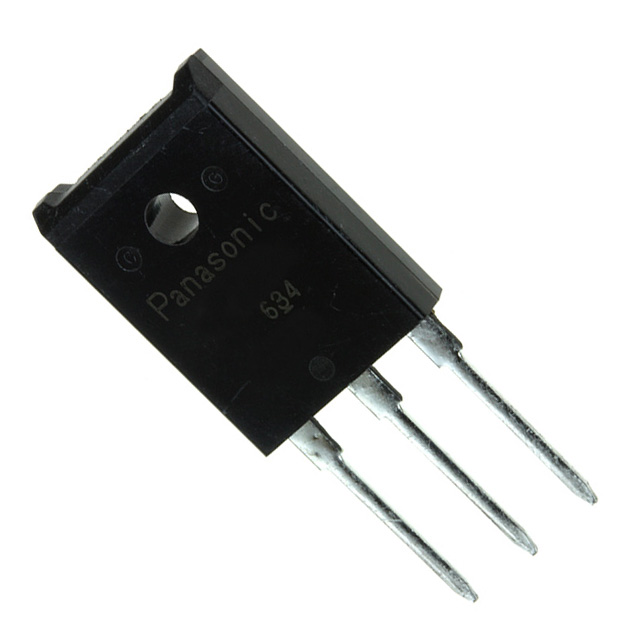

2SC3978A Product Image

2SC Series Datasheet download

Five Points

Part Number: 2SC3978A



MFG: 5000

Package Cooled: Panasonic





Urgent Purchase

2SC3978A Maximum Ratings

PARAMETER
SYMBOL
RATING

UNIT

Collector to Base Voltage 2SC3978
VCBO
900
V
2SC3978A
1000
Collector to Emitter Voltage 2SC3978
VCES
900
V
2SC3978A
1000
Collector to emitter voltage
VCEO
800
V
Emitter to Base Voltage
VEBO
7
V
Collector Current
IC
2
mA
Peak collector current
ICP
3
mA
Base current
IB
4
mA
Collector Dissipation TC=25°C
PC
35
mW
Ta=25°C
2.0
Junction Temperature
TJ
150
Storage Temperature
Tstg
-55to+150

2SC3978A Features

·High-speed switching
·High collector to base voltage VCBO
·Wide area of safe operation (ASO)
·Satisfactory linearity of foward current transfer ratio hFE
·Full-pack package which can be installed to the heat sink with one screw

2SC3978A datasheet

2SC3978A
PDF/DataSheet Download

  • Datasheet: 2SC3978A
  • File Size: 61811 KB
  • Manufacturer: PANASONIC [Panasonic Semiconductor]
  • Click here to Download
