Purchase 2SC4116, In-stock 2SC4116 From SeekIC.
MFG:TOSHIBA D/C:06+
- Table of contents:
2SC4116
-
Suppliers
DataSheet
General Description
2SC4116 Maximum Ratings
| SYMBOL | PARAMETER | RATING | UNIT |
| VCBO | Collector to base voltage | 60 | V |
| VCEO | Collector to emitter voltage | 50 | V |
| VEBO | Emitter to base voltage | 5 | V |
| IC | Collector current | 150 | mA |
| IB | Base current | 30 | mA |
| PC | Collector dissipation | 100 | mW |
| Tj | Junction temperature | 125 | |
| Tstg | Storage temperaturerange | -55 to +125 |
2SC4116 Features
·High voltage and high current: VCEO = 50 V, IC = 150 mA (max).
·Excellent hFE linearity: hFE (IC = 0.1 mA)/hFE (IC = 2 mA) = 0.95 (typ).
·High hFE: hFE = 70 ~700.
·Low noise: NF = 1dB (typ.), 10dB (max).
·Small package.
·Excellent hFE linearity: hFE (IC = 0.1 mA)/hFE (IC = 2 mA) = 0.95 (typ).
·High hFE: hFE = 70 ~700.
·Low noise: NF = 1dB (typ.), 10dB (max).
·Small package.
2SC4116
PDF/DataSheet Download
- Datasheet: 2SC4116
- File Size: 216425 KB
- Manufacturer: Toshiba
- Click here to Download
- ·2SC0829
- PANASONIC [Panasonic Semiconductor]
- Silicon NPN epitaxial planar type
- 114565 KB
- ·2SC1008
- ETC [ETC]
- TRANSISTOR NPN
- 360492 KB
- ·2SC1009
- NEC [NEC]
- FM/AM RF AMPLIFIER, MIXER,OSCILLATOR,CONVERTER PNP SILICON EPITAXIAL TRANSISTOR MINI MOLD
- 332840 KB
- ·2SC1009A
- NEC [NEC]
- FM/AM RF AMPLIFIER, MIXER,OSCILLATOR,CONVERTER PNP SILICON EPITAXIAL TRANSISTOR MINI MOLD
- 332840 KB
- ·2SC1012
- ETC [ETC]
- High Voltage Transistors
- 81381 KB
- ·2SC1012A
- ETC [ETC]
- High Voltage Transistors
- 81381 KB
- ·2SC1030
- ETC [ETC]
- SILICON NPN TRASISTORS
- 45767 KB
- ·2SC1033
- ETC [ETC]
- High Voltage Transistors
- 81381 KB
2SC4116 Relative Products

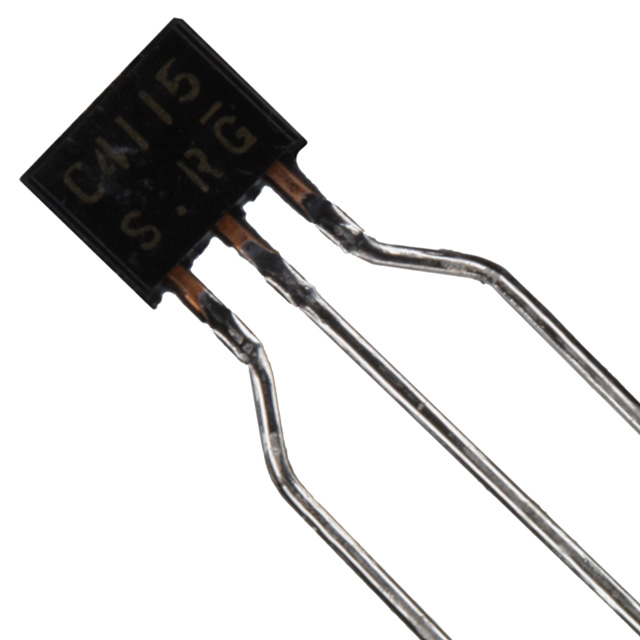

2SC4115STPR
