321527A00000

Heat Sinks HEAT SINK

product image

321527A00000 Picture
See larger image
SeekIC No. : 002533752 Detail

321527A00000: Heat Sinks HEAT SINK

321527A00000 Data Sheet

floor Price/Ceiling Price

US $ 15.59~15.59 / Piece | Get Latest Price
Part Number:
321527A00000
Mfg:
Aavid Thermalloy
Supply Ability:
5000

Price Break

  • Qty
  • 0~154
  • Unit Price
  • $15.59
  • Processing time
  • 15 Days
View more price & deliveries
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/6

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Product : Heatsinks Mounting Style : SMD/SMT
Heatsink Material : Aluminum Fin Style : Radial
Thermal Resistance : 35.2 C / W Height : 7.37 mm
Designed for : TO-5, TO-39

Description

Length :
Width :
Product : Heatsinks
Heatsink Material : Aluminum
Mounting Style : SMD/SMT
Fin Style : Radial
Thermal Resistance : 35.2 C / W
Height : 7.37 mm
Designed for : TO-5, TO-39


Pinout

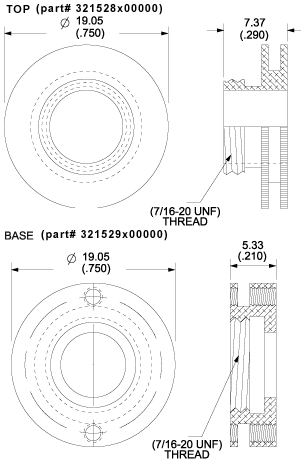

Connection Diagram


Specifications

Part # Description Finish Board Mounting
321527A00000 Two piece heat sink Hard Black Anodize N/A



Description

Thermal Resistance 35.20

Thermal resistance value of 321527A00000 is based on a 75C rise in natural convection


Parameters:

Technical/Catalog Information321527A00000
VendorAavid Thermalloy
CategoryThermal Management
Attachment MethodThreaded Coupling
Height-
Material-
Package CooledTO-5, TO-39
Power Dissipation @ Temperature Rise1W @ 40°C
Thermal Resistance @ Forced Air Flow20°C/W @ 300 LFM
Outline19.05mm Dia
Thermal Resistance @ Natural-
Lead Free StatusContains Lead
RoHS StatusRoHS Non-Compliant
Other Names 321527A00000
321527A00000
