322400B00000G

Heat Sinks BLK ANODIZE TO-92/18

product image

322400B00000G Picture
See larger image
SeekIC No. : 002533078 Detail

322400B00000G: Heat Sinks BLK ANODIZE TO-92/18

322400B00000G Data Sheet

floor Price/Ceiling Price

US $ .45~.66 / Piece | Get Latest Price
Part Number:
322400B00000G
Mfg:
Aavid Thermalloy
Supply Ability:
5000

Price Break

  • Qty
  • 0~1
  • 1~10
  • 10~100
  • 100~500
  • Unit Price
  • $.66
  • $.59
  • $.5
  • $.45
  • Processing time
  • 15 Days
  • 15 Days
  • 15 Days
  • 15 Days
View more price & deliveries
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/4

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Product : Heatsinks Mounting Style : Press Fit
Heatsink Material : Aluminum Fin Style : Radial
Thermal Resistance : 100 C / W Length : 0.5 in
Width : 0.5 in Height : 5.97 mm
Designed for : TO-18

Description

Product : Heatsinks
Heatsink Material : Aluminum
Mounting Style : Press Fit
Fin Style : Radial
Thermal Resistance : 100 C / W
Length : 0.5 in
Width : 0.5 in
Height : 5.97 mm
Designed for : TO-18


Pinout

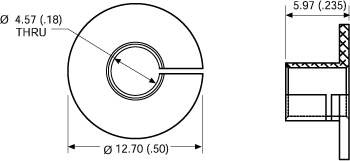

Connection Diagram


Specifications

Part # Description Finish Board Mounting
322400B00000G Low cost push on heat sink Black Anodize N/A



Description

Thermal Resistance 100.00

Thermal resistance value of 322400B00000G is based on a 75C rise in natural convection


Parameters:

Technical/Catalog Information322400B00000G
VendorAavid Thermalloy
CategoryThermal Management
Attachment MethodPress Fit
Height0.235" (5.969mm)
MaterialAluminum
Package CooledTO-18
Power Dissipation @ Temperature Rise0.6W @ 60°C
Thermal Resistance @ Forced Air Flow30°C/W @ 500 LFM
Outline12.70mm Dia
Thermal Resistance @ Natural100°C/W
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names 322400B00000G
322400B00000G
HS100 ND
HS100ND
HS100
