322805B00000G

Heat Sinks BLACK ANODIZE TO-5

product image

322805B00000G Picture
See larger image
SeekIC No. : 002532974 Detail

322805B00000G: Heat Sinks BLACK ANODIZE TO-5

322805B00000G Data Sheet

floor Price/Ceiling Price

US $ 1.55~1.85 / Piece | Get Latest Price
Part Number:
322805B00000G
Mfg:
Aavid Thermalloy
Supply Ability:
5000

Price Break

  • Qty
  • 0~1
  • 1~10
  • 10~100
  • 100~500
  • Unit Price
  • $1.85
  • $1.71
  • $1.63
  • $1.55
  • Processing time
  • 15 Days
  • 15 Days
  • 15 Days
  • 15 Days
View more price & deliveries
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Product : Heatsinks Mounting Style : Press Fit
Heatsink Material : Aluminum Fin Style : Radial
Thermal Resistance : 40 C / W Length : 22.225 mm
Width : 22.225 mm Height : 13.487 mm
Designed for : TO-5

Description

Product : Heatsinks
Heatsink Material : Aluminum
Mounting Style : Press Fit
Fin Style : Radial
Thermal Resistance : 40 C / W
Designed for : TO-5
Length : 22.225 mm
Width : 22.225 mm
Height : 13.487 mm


Pinout

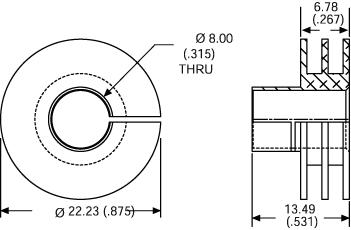

Connection Diagram


Specifications

Part # Description Finish Board Mounting
322805B00000G Low cost push on heat sink with 3 fins for increased thermal performance Black Anodize N/A



Description

Thermal Resistance 40.00

Thermal resistance value of 322805B00000G is based on a 75C rise in natural convection


Parameters:

Technical/Catalog Information322805B00000G
VendorAavid Thermalloy
CategoryThermal Management
Attachment MethodPress Fit
Height0.531" (13.49mm)
Material-
Package CooledTO-5, TO-39
Power Dissipation @ Temperature Rise1W @ 50°C
Thermal Resistance @ Forced Air Flow30°C/W @ 200 LFM
Outline-
Thermal Resistance @ Natural-
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names 322805B00000G
