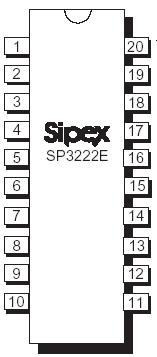

PinoutSpecificationsVCC...........................................................................................-0.3V to +6.0VV+ (NOTE 1)..............................................................................-0.3V to +7.0VV- (NOTE 1)...........................................................
3232E: PinoutSpecificationsVCC...........................................................................................-0.3V to +6.0VV+ (NOTE 1)..............................................................
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.
US $655.7 - 718.16 / Piece
Multi-Conductor Cable 20AWG 3C SHIELD 1000ft SPOOL SLATE
US $429.85 - 483.14 / Piece
Multi-Conductor Cable 20AWG 3C SHIELD 500ft SPOOL SLATE
The SP3222E/3232E series is an RS-232 transceiver solution intended for portable or handheld applications such as notebook or palmtop computers. The SP3222E/3232E series has a high-efficiency, charge-pump power supply that requires only 0.1µF capacitors in 3.3V operation. This charge pump allows the SP3222E/3232E series to deliver true RS-232 performance from a single power supply ranging from +3.3V to +5.0V. The SP3222E/3232E are 2-driver/2 receiver devices. This series is ideal for portable or hand-held applications such as notebook or palmtop computers. The ESD tolerance of the SP3222E/3232E devices are over ±15kV for both Human Body Model and IEC1000-4-2 Air discharge test methods. The SP3222E device has a low-power shutdown mode where the devices' driver outputs and charge pumps are disabled. During shutdown, the supply current falls to less than 1µA.
