326005R00000G

Heat Sinks THERMALLOY HEAT SINK

product image

326005R00000G Picture
See larger image
SeekIC No. : 002533841 Detail

326005R00000G: Heat Sinks THERMALLOY HEAT SINK

326005R00000G Data Sheet

floor Price/Ceiling Price

US $ 1.42~1.42 / Piece | Get Latest Price
Part Number:
326005R00000G
Mfg:
Aavid Thermalloy
Supply Ability:
5000

Price Break

  • Qty
  • 0~1200
  • Unit Price
  • $1.42
  • Processing time
  • 15 Days
View more price & deliveries
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/28

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Product : Heatsinks Mounting Style : Press Fit
Heatsink Material : Aluminum Fin Style : Radial
Thermal Resistance : 57 C / W Height : 9.53 mm
Designed for : TO-5

Description

Length :
Width :
Product : Heatsinks
Heatsink Material : Aluminum
Mounting Style : Press Fit
Fin Style : Radial
Designed for : TO-5
Height : 9.53 mm
Thermal Resistance : 57 C / W


Pinout

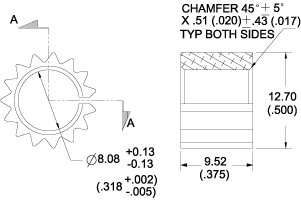

Connection Diagram


Specifications

Part # Description Finish Board Mounting
326005R00000G Extruded collar style heat sink with radial fins Red N/A



Description

Thermal Resistance 57.00

Thermal resistance value of 326005R00000G is based on a 75C rise in natural convection


Parameters:

Technical/Catalog Information326005R00000G
VendorAavid Thermalloy
CategoryThermal Management
Attachment MethodPress Fit
Height0.375" (9.53mm)
MaterialAluminum
Package CooledTO-5, TO-39
Power Dissipation @ Temperature Rise1W @ 55°C
Thermal Resistance @ Forced Air Flow30°C/W @ 200 LFM
Outline12.70mm Dia
Thermal Resistance @ Natural57°C/W
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names 326005R00000G
326005R00000G
