General Description
33186 General Description
The 33186 is a monolithic H-Bridge ideal for fractional horsepower DC-motor and bi-directional thrust solenoid control. The IC incorporates internal control logic, charge pump, gate drive, and low RDS(ON) MOSFET output circuitry. The 33186 is able to control continuous inductive DC load currents up to 5.0 A. Output loads can be pulse width modulated (PWM-ed) at frequencies up to 10 kHz.
The 33186 is parametrically specified over a temperature range of -40°C TA 125°C, 5.0 V V+ 28 V. The IC can also be operated up to 40 V with de-rating of the specifications. The IC is available in a surface mount power package with exposed pad for heat sinking.
33186 Features
• Overtemperature, Short-Circuit Protection, and Overvoltage Protection against Transients up to 40 V at VBAT Typical
• RDSon = 150 mΩ for each output Transistor at 25°C
• Continuous DC Load Current 5 A (TC < 100°C)
• Output Current Limitation at typ 6,5 A +/- 20%
• Short-Circuit Shutdown for Output Currents over 8 A
• Logic Inputs TTL/CMOS Compatible
• Operating Frequency up to 20 kHz
• Undervoltage Disable Function
• Diagnostic Output, 2 Disable Input
• Coding Input for Alternative Functions
• Stable Operation with an External Capacitance of Maximum 47 at VBAT
• Pb-Free Packaging Designated by Suffix Code VW
• RDSon = 150 mΩ for each output Transistor at 25°C
• Continuous DC Load Current 5 A (TC < 100°C)
• Output Current Limitation at typ 6,5 A +/- 20%
• Short-Circuit Shutdown for Output Currents over 8 A
• Logic Inputs TTL/CMOS Compatible
• Operating Frequency up to 20 kHz
• Undervoltage Disable Function
• Diagnostic Output, 2 Disable Input
• Coding Input for Alternative Functions
• Stable Operation with an External Capacitance of Maximum 47 at VBAT
• Pb-Free Packaging Designated by Suffix Code VW
33186 Connection Diagram
3310F
PDF/DataSheet Download
- Datasheet: 3310F
- File Size: 165868 KB
- Manufacturer: VMI
- Click here to Download
- ·3310H-001-103
- BOURNS
- Square Sealed Panel Control
- 258795 KB
- ·3310H-001-103L
- BOURNS
- Square Sealed Panel Control
- 258795 KB
- ·3310H-002-103
- BOURNS
- Square Sealed Panel Control
- 258795 KB
- ·3310H-002-103L
- BOURNS
- Square Sealed Panel Control
- 258795 KB
- ·3310H-003-103
- BOURNS
- Square Sealed Panel Control
- 258795 KB
- ·3310H-003-103L
- BOURNS
- Square Sealed Panel Control
- 258795 KB
- ·3310H-004-103
- BOURNS
- Square Sealed Panel Control
- 258795 KB
- ·3310H-004-103L
- BOURNS
- Square Sealed Panel Control
- 258795 KB
33186 Relative Products
3318
FAN TUBEAXIAL 92X32MM 48VDC
3-316081-3
CONN HDR 12POS R/A KEY-XY 30GOLD
-
3-316081-2
CONN HDR 12POS R/A KEY-XY 15GOLD

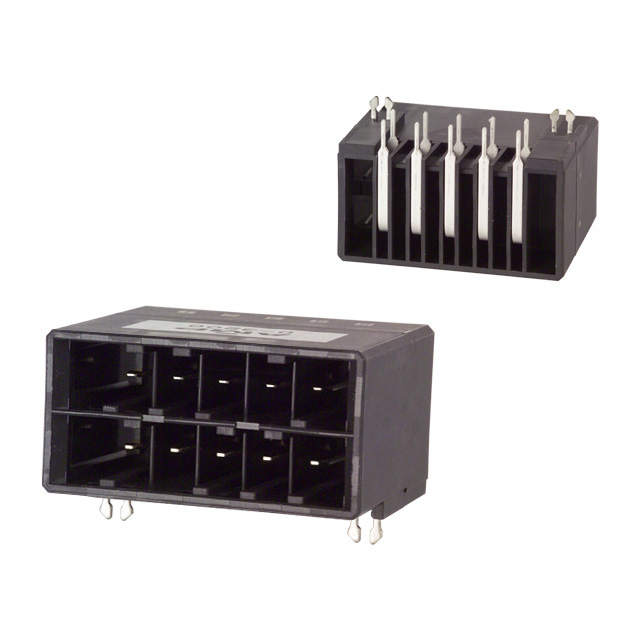

3-316080-5
