Features:

• Supports up to 9 Electrodes and 2 References
• Shield Driver for Driving Remote Electrodes Through Coaxial Cables
• +5.0 V Regulator to Power External Circuit
• ISO-9141 Physical Layer Interface
• Lamp Driver Output
• Watchdog and Power ON Reset Timer
• Critical Internal Nodes Scaled and Selectable for Measurement
• High-Purity Sine Wave Generator Tunable with External Resistor


Pinout

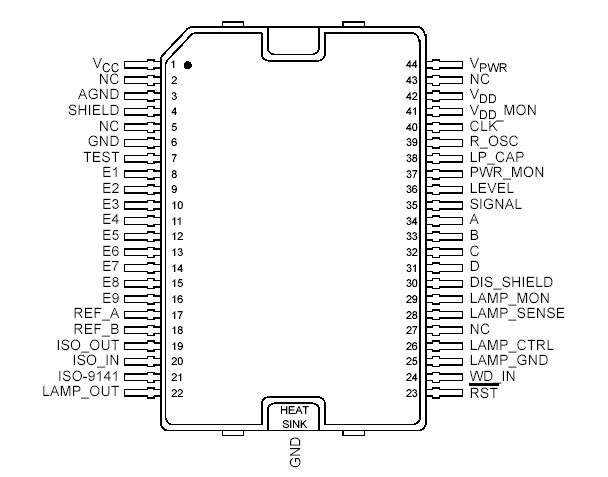

Connection Diagram


Specifications

Rating Symbol Value Unit
Peak VPWR Voltage VPWRPK 40 V
Double Battery
1 Minute Maximum TA = 30		 VDBLBAT 26.5 V
ESD Voltage
Human Body Model (Note 1)
Machine Model (Note 2)		 VESD1
VESD2		 ±2000
±200		 V
Storage Temperature TSTG -55 to 150
Operating Ambient Temperature TA -40 to 85
Operating Junction Temperature TJ -40 to 150
Thermal Resistance
Junction-to-Ambient (Note 3)
Junction-to-Case (Note 4)
Junction-to-Board (Note 5)		 RJ-A
RJ-C
RJ-B		 41
0.2
3.0		 /W
Soldering Temperature (for 10 Seconds) TSOLDER 260



Description

The 33794 is intended for applications where noncontact sensing of objects is desired. When connected to external electrodes, an electric field is created.

The 33794 is intended for use in detecting objects in this electric field. The IC generates a low-frequency sine wave. The frequency is adjustable by using an external resistor and is optimized for 120 kHz. The sine wave has very low harmonic content to reduce harmonic interference.

The 33794 also contains support circuits for a microcontroller unit (MCU) to allow the construction of a two-chip E-field system.
