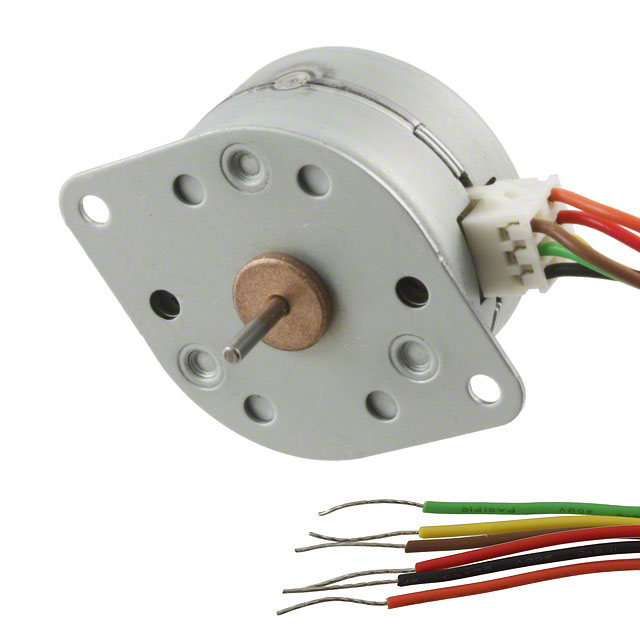

35L048B2U: STEPPER MOTOR 12VDC 7.5DEG UNI

35L048B2U Data Sheet

US $ 10.23~16.37 / Piece | Get Latest Price

Part Number:: 35L048B2U
Mfg:
Supply Ability:: 5000

Price Break

Qty
0~1
1~10
10~50
50~100
100~250

Unit Price
$16.37
$13.91
$12.28
$11.05
$10.23

Processing time
15 Days
15 Days
15 Days
15 Days
15 Days

View more price & deliveries

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2025/12/4

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

35L048B1B evaluate
US $9.35 - 14.95 / Piece

STEPPER MOTOR 5VDC 7.5DEG BI
35L048B1U evaluate
US $9.75 - 15.6 / Piece

STEPPER MOTOR 5VDC 7.5DEG UNIPOL

Product Details

Quick Details

Series:	35L	Manufacturer:	Portescap
Type:	Standard	Coil Type:	Unipolar
Voltage - Rated:	12VDC	Steps per Revolution:	48
Step Angle:	7.5°	Minimum Operating Temperature :	- 40 C
Torque - Holding (oz-in / mNm):	3.5 / 25	Diameter - Body:	1.42" (35.94mm)
Diameter - Shaft:	0.079" (2.00mm)	Length - Shaft and Bearing:	0.445" (11.30mm)
Mounting Hole Spacing:	1.65" (42.00mm)

Description

Type: Standard
Coil Type: Unipolar
Manufacturer: Portescap
Steps per Revolution: 48
Step Angle: 7.5°
Diameter - Shaft: 0.079" (2.00mm)
Length - Shaft and Bearing: 0.445" (11.30mm)
Length - Lead Wire: 7.50" (190.50mm)
Series: 35L
Voltage - Rated: 12VDC
Torque - Holding (oz-in / mNm): 3.5 / 25
Diameter - Body: 1.42" (35.94mm)
Mounting Hole Spacing: 1.65" (42.00mm)

Parameters:

Technical/Catalog Information	35L048B2U
Vendor	Portescap Danaher Motion US LLC
Category	Motors, Solenoids, Driver Boards/Modules
Voltage - Rated	12VDC
Type	Standard
Holding Torque (oz-in / mNm)	3.5 / 25
Step Angle	7.5°
Steps per Revolution	48
Diameter - Body	1.42" (35.94mm)
Diameter - Shaft	0.078" (2.00mm)
Lead Length	7.50" (190.50mm)
Mounting Hole Spacing	1.65" (42.01mm)
Coil Type	Unipolar
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	35L048B2U 35L048B2U 403 1007 ND 4031007ND 403-1007
