SeekIC No. : 003443080 Detail

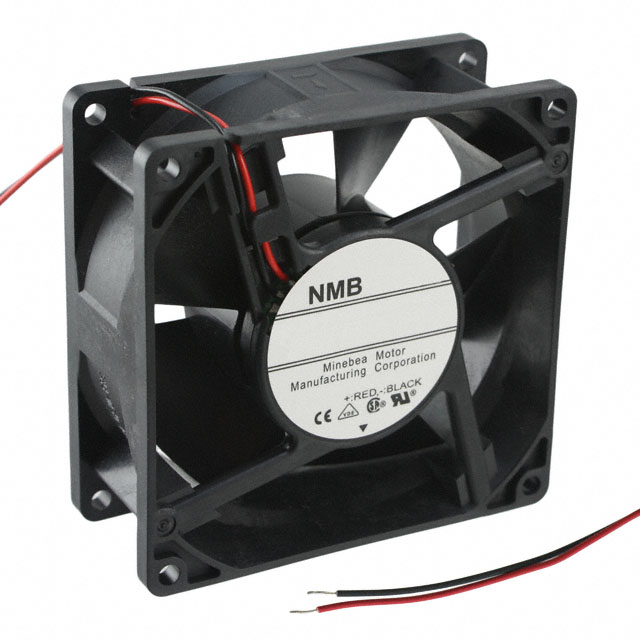

3615KL-05W-B50-P00: FAN DC AXIAL 24V 92X38.4MM

3615KL-05W-B50-P00 Data Sheet

US $ 6.18~12.11 / Piece | Get Latest Price

Part Number:: 3615KL-05W-B50-P00
Mfg:
Supply Ability:: 5000

Price Break

Qty
0~1
1~10
10~25
25~50
50~100
100~250
250~500
500~1000

Unit Price
$12.11
$11.08
$9.28
$8.5
$7.47
$6.96
$6.44
$6.18

Processing time
15 Days
15 Days
15 Days
15 Days
15 Days
15 Days
15 Days
15 Days

View more price & deliveries

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2025/12/6

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

36150 evaluate
US $.1 - .14 / Piece

Terminals PIDG R 22-16 COMM 22
36151 evaluate
US $.08 - .12 / Piece

Terminals 22-16 AWG
36152 evaluate
US $.06 - .1 / Piece

Terminals NYLON RING 22-16 6

Product Details

Quick Details

Series:	3615KL	Manufacturer:	NMB Technologies Corporation
Fan Type:	Tubeaxial	Size / Dimension:	Square - 92mm L x 92mm H x 38.4mm W
Voltage - Rated:	24VDC	Power (Watts):	5.76W
Features:	-	RPM:	4000 RPM
Noise:	46.5 dB	Static Pressure:	0.358 in H2O (89.2 Pa)
Package / Case :	SOT-307	Air Flow:	76.2 CFM (2.16m³/min)
Termination:	2 Wire Leads	Bearing Type:	Ball

Description

Fan Type: Tubeaxial
Features: -
Termination: 2 Wire Leads
Bearing Type: Ball
Manufacturer: NMB Technologies Corporation
Voltage - Rated: 24VDC
Operating Temperature: 14 ~ 140°F (-10 ~ 60°C)
RPM: 4000 RPM
Noise: 46.5 dB
Series: 3615KL
Size / Dimension: Square - 92mm L x 92mm H x 38.4mm W
Power (Watts): 5.76W
Static Pressure: 0.358 in H2O (89.2 Pa)
Air Flow: 76.2 CFM (2.16m³/min)

Parameters:

Technical/Catalog Information	3615KL-05W-B50-P00
Vendor	NMB Technologies Corporation
Category	Fans, Thermal Management
Voltage - Rated	24VDC
Power (Watts)	5.76W
Bearing Type	Ball
Size / Dimension	Square - 92mm L x 92mm H x 38mm W
Air Flow	54.70 CFM
Features	-
Termination	2 Wire Leads
Fan Type	Tubeaxial
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	3615KL 05W B50 P00 3615KL05WB50P00 P12850 ND P12850ND P12850
