Product Details

Description



Features:

· 10+10W (RL = 8Ω) + 18W ( RL = 4Ω) or  10+10+10W ( RL = 8Ω) OUTPUT POWER @THD = 10%, Vcc = 26V
· INDEPENDENT MUTE FOR CENTER  CHANNEL AND MAIN CHANNELS
· NO TURN-ON TURN-OFF POP NOISE
· NO BOUCHEROT CELL
· SINGLE SUPPLY RANGING UP TO 35V
· SHORT CIRCUIT PROTECTION
· THERMAL OVERLOAD PROTECTION
· INTERNALLY FIXED GAIN
· SOFT CLIPPING
· MULTIWATT 15 PACKAGE


Pinout

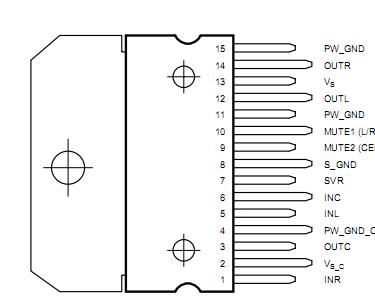

Connection Diagram


Specifications

Symbol Parameters Value Unit
VS DC Supply Voltage 35 V
Ptot Total Power Dissipation (Tamb = 70°C) 20 W
Tamb Ambient Operating Temperature Range (1) 0 to 70
Tstg, Tj Storage and Junction Temperature -40 to 150
(1) Operation between -20 to 85 °C guaranteed by correlation with 0 to 70°C.


Description

The 38044 is a triple 10+10+10/18W class AB power amplifier assembled in the @ Multiwatt 15 package, specially designed for high quality sound, TV applications.

Features of the 38044 include mute functions, in-dependently controller for main and center channels.
