Features:

*Basic machine-language instructions .................................... 71
*Minimum instruction execution time ................................ 0.5 µs
  (at 8 MHz oscillation frequency)
*Memory size
  ROM ............................................................... 32K to 60K bytes
  RAM............................................................. 1024 to 2048 bytes
*Programmable input/output ports ......................................... 72
*Software pull-up transistors .................................................... 8
*Interrupts ............................................... 22 sources, 16 vectors
*Timers .......................................................................... 8-bit * 4
*Watchdog timer ......................................................... 16-bit * 1
*PWM output ................................................................ 14-bit *2
*Serial I/O....................... 8-bit * 1(UART or Clock-synchronized)
*Multi-master I2C bus interface (option) ...................... 1 channel
*LPC interface ............................................................ 2 channels
*Serialized IRQ ................................................................ 3 factor
*A-D converter ............................................. 10-bit * 8 channels
*D-A converter ............................................... 8-bit * 2 channels
*Comparator circuit .................................................... 8 channels
*Clock generating circuit .................................... Built-in 2 circuits
(connect to external ceramic resonator or quartz-crystal oscillator)
*Power source voltage.............................................. 3.0 to 3.6 V
*Power dissipation
  In high-speed mode ........................................................20 mW
  (at 8 MHz oscillation frequency, at 3.3 V power source voltage)
  In low-speed mode ....................................................... 330 mW
  (at 32 kHz oscillation frequency, at 3.3 V power source voltage)
*Operating temperature range...............................20 to 85°C


Application

Note book PC


Pinout

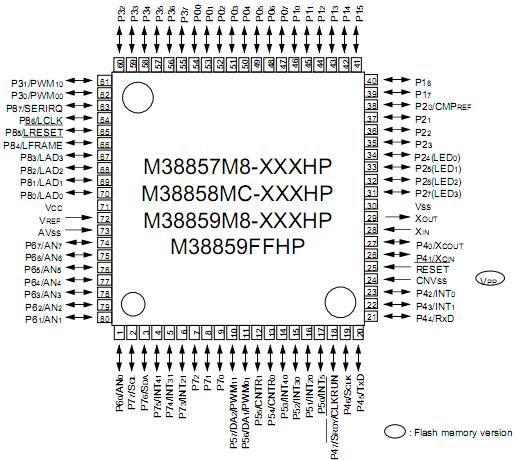

Connection Diagram


Specifications

Symbol Parameter Conditions Ratings Unit
VCC Power source voltages All voltages are based on VSS.
Output transistors are cut off.		 0.3 to 4.6 V
VI Input voltage P00P07, P10P17, P20P27,
P30P37, P40P47, P50P57,
P60P67, P80P87, VREF
RESET, XIN		 0.3 to VCC +0.3 V
VI Input voltage P70P77 0.3 to 5.8 V
VI Input voltage CNVSS (Note 1) 0.3 to 6.5 V
VI Input voltage CNVSS (Note 2) 0.3 to VCC +0.3 V
VO Output voltage P00P07, P10P17, P20P27,
P30P37, P40P47, P50P57,
P60P67, P80P87, XOUT		 0.3 to VCC +0.3 V
VO Output voltage P70P77 0.3 to 5.8 V
Pd Power dissipation Ta = 25 °C 500 mW
Topr Operating temperature   20 to 85 °C
Tstg Storage temperature 40 to 125 °C



Description

    The 3885 group is the 8-bit microcomputer based on the 740 family core technology.

    The 3885 group is designed for Keyboard Controller for the note book PC.

    The multi-master I2C-bus interface can be added by option.
