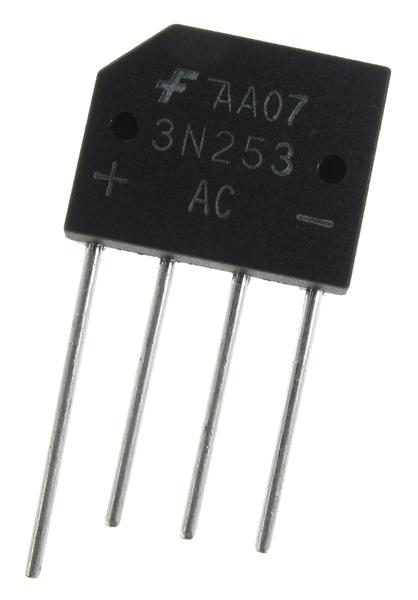

3N253

Product : Single Phase Bridge
Maximum Operating Temperature : + 150 C
Mounting Style : Through Hole
Packaging : Tube
Forward Voltage Drop : 1.1 V
Maximum Reverse Leakage Current : 5 uA
Length : 15.24 mm
Width : 5.08 mm
Peak Reverse Voltage : 50 V
Maximum RMS Reverse Voltage : 35 V
Forward Continuous Current : 2 A
Max Surge Current : 60 A
Package / Case : SIP-4
Height : 12.7 mm
Power Dissipation : 4.7 W


Features:

·Surge overload rating: 60 amperes peak.
· Reliable low cost construction utilizing molded plastic technique.
·UL certified, UL #E111753.





Specifications

Symbol	Parameter	Value							Units
		005M	01M	02M	04M	06M	08M	10M
		253	254	255	256	257	258	259
VRRM	Maximum Repetitive Reverse Voltage	50	100	200	400	600	800	1000	V
VRMS	Maximum RMS Bridge Input Voltage	35	70	140	280	420	560	700	V
VR	DC Reverse Voltage (Rated VR )	50	100	200	400	600	800	1000	V
IF(AV)	Average Rectified Forward Current, @ TA= 50	2.0							A
IFSM	Non-repetitive Peak Forward Surge Current	60							A
Tstg	Storage Temperature Range	-55 to +165
TJ	Operating Junction Temperature	-55 to +165

*These ratings are limiting values above which the serviceability of any semiconductor device may be impaired.




Parameters:

Technical/Catalog Information	3N253
Vendor	Fairchild Semiconductor
Category	Discrete Semiconductor Products
Diode Type	Single Phase
Package / Case	KBPM
Packaging	Tube
Reverse Recovery Time (trr)	-
Speed	Standard Recovery >500ns, > 200mA (Io)
Current - DC Forward (If)	2A
Voltage - Peak Reverse (Max)	50V
Mounting Type	Through Hole
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	3N253 3N253
