3N254

Bridge Rectifiers 100V 2A BRIDGE

product image

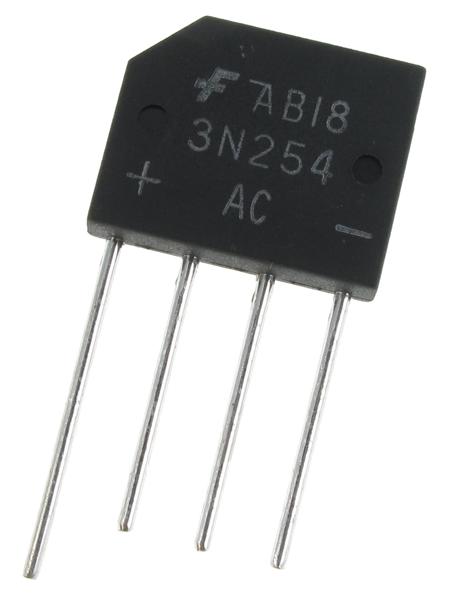

3N254 Picture
See larger image
SeekIC No. : 00135350 Detail

3N254: Bridge Rectifiers 100V 2A BRIDGE

3N254 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
3N254
Mfg:
Fairchild Semiconductor
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/5

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Product : Single Phase Bridge Peak Reverse Voltage : 100 V
Maximum RMS Reverse Voltage : 70 V Forward Continuous Current : 2 A
Max Surge Current : 60 A Forward Voltage Drop : 1.1 V
Maximum Reverse Leakage Current : 5 uA Power Dissipation : 4.7 W
Maximum Operating Temperature : + 150 C Length : 15.24 mm
Width : 5.08 mm Height : 12.7 mm
Mounting Style : Through Hole Package / Case : SIP-4
Packaging : Tube

Description

Product : Single Phase Bridge
Maximum Operating Temperature : + 150 C
Mounting Style : Through Hole
Packaging : Tube
Forward Voltage Drop : 1.1 V
Maximum Reverse Leakage Current : 5 uA
Peak Reverse Voltage : 100 V
Maximum RMS Reverse Voltage : 70 V
Length : 15.24 mm
Width : 5.08 mm
Forward Continuous Current : 2 A
Max Surge Current : 60 A
Package / Case : SIP-4
Height : 12.7 mm
Power Dissipation : 4.7 W


Description

2KBP005M thru 2KBP10M datasheet


Parameters:

Technical/Catalog Information3N254
VendorFairchild Semiconductor
CategoryDiscrete Semiconductor Products
Diode Type Single Phase
Package / CaseKBPM
PackagingTube
Reverse Recovery Time (trr)-
SpeedStandard Recovery >500ns, > 200mA (Io)
Current - DC Forward (If)2A
Voltage - Peak Reverse (Max)100V
Mounting TypeThrough Hole
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names 3N254
3N254
