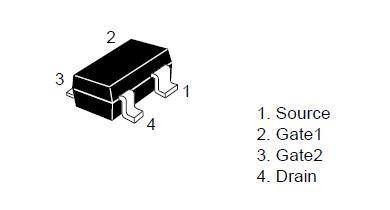

Features: · Low noise figure.NF = 2.3 dB Typ. at f = 900 MHz· High gain.PG = 19.3 dB Typ. at f = 900 MHzApplicationUHF RF amplifierPinoutSpecifications Item Symbol Ratings Unit Drain to source voltage VDS 12 V Gate 1 to source voltage VG1S ±8 V Gate 2 to source voltage VG1...
3SK290: Features: · Low noise figure.NF = 2.3 dB Typ. at f = 900 MHz· High gain.PG = 19.3 dB Typ. at f = 900 MHzApplicationUHF RF amplifierPinoutSpecifications Item Symbol Ratings Unit Drain to s...
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.
Item | Symbol | Ratings | Unit |
Drain to source voltage | VDS | 12 | V |
Gate 1 to source voltage | VG1S | ±8 | V |
Gate 2 to source voltage | VG1S | ±8 | V |
Drain current | ID | 25 | mA |
Channel power dissipation | Pch | 100 | mW |
Channel temperature | Tch | 125 | °C |
Storage temperature | Tstg | 55 to +125 | °C |
