3SK309

Features: · Capable of low voltage operation (VDS = 1.5 to 3 V)· Excellent low noise characteristics (NF = 1.25 dB typ. at f = 900 MHz)· High power gain (PG = 21.0 dB typ. at f = 900 MHz)PinoutSpecifications Item Symbol Ratings Unit Drain to source voltage VDS 6 V Gate 1 to source...

product image

3SK309 Picture
See larger image
SeekIC No. : 004230132 Detail

3SK309: Features: · Capable of low voltage operation (VDS = 1.5 to 3 V)· Excellent low noise characteristics (NF = 1.25 dB typ. at f = 900 MHz)· High power gain (PG = 21.0 dB typ. at f = 900 MHz)PinoutSpeci...

3SK309 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
3SK309
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/19

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

·  Capable of low voltage operation (VDS = 1.5 to 3 V)
·  Excellent low noise characteristics (NF = 1.25 dB typ. at f = 900 MHz)
·  High power gain (PG = 21.0 dB typ. at f = 900 MHz)

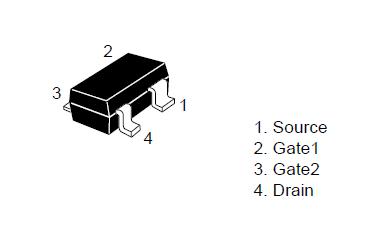

Pinout

Connection Diagram


Specifications

Item Symbol Ratings Unit
Drain to source voltage VDS 6 V
Gate 1 to source voltage VG1S 4 V
Gate 2 to source voltage VG1S 4 V
Drain current ID 18  mA
Channel power dissipation Pch 100  mW
Channel temperature Tch 125 °C
Storage temperature Tstg 55 to +125 °C
