Features:

True Dual-Ported memory cells which allow simultaneous access of the same memory location
High-speed clock to data access
Commercial: 7.5/9/12ns (max.)
Low-power operation
IDT70V9189L
Active: 500mW (typ.)
Standby: 1.5mW (typ.)
Flow-Through or Pipelined output mode on either port via he FT/PIPE pins
Counter enable and reset features
Dual chip enables allow for depth expansion without additional logic
Full synchronous operation on both ports
4ns setup to clock and 0ns hold on all control, data, and address inputs
Data input, address, and control registers
Fast 7.5ns clock to data out in the Pipelined output mode
Self-timed write allows fast cycle time
12ns cycle time, 83MHz operation in Pipelined output mode
LVTTL- compatible, single 3.3V (±0.3V) power supply
Industrial temperature range (40°C to +85°C) is available for selected speeds
Available in a 100-pin Thin Quad Flatpack (TQFP)


Pinout

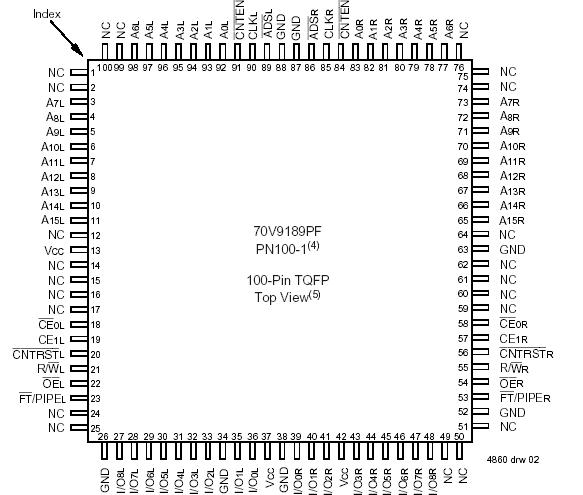

Connection Diagram
NOTES:
1. All Vcc pins must be connected to power supply.
2. All GND pins must be connected to ground.
3. Package body is approximately 14mm x 14mm x 1.4mm.
4. This package code is used to reference the package diagram.
5. This text does not indicate orientation of the actual part-marking.


Specifications



Symbol
Rating
Commercial
& Industrial
Unit
VTERM
Terminal Voltage
with respect to GND
-0.5 to +4.6
V
VTERM
Terminal Voltage
-0.5 to VCC
V
VTER(2)
Temperature
Under Bias
-55 to +125
°C
TSTG
Storage
Temperature
-65 to +150
°C
IOUT
DC Output Current
50
mA
NOTES:
1. Stresses greater than those listed under ABSOLUTE MAXIMUM RATINGS may cause permanent damage to the device. This is a stress rating only and functional operation of the device at these or any other conditions above those indicated in the operational sections of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect reliability.
2. VTERM must not exceed VCC +0.3V for more than 25% of the cycle time or 10ns maximum, and is limited to < 20mA for the period of VTERM > Vcc + 0.3V.<


Description

The IDT70V9189 is a high-speed 64K x 9 bit synchronous Dual- Port RAM. The memory array utilizes Dual-Port memory cells to allow simultaneous access of any address from both ports. Registers on control, data, and address inputs provide minimal setup and hold times. The timing latitude of the IDT70V9189 provided by this approach allows systems to be designed with very short cycle times.

With an input data register, the IDT70V9189 has been optimized for applications having unidirectional or bidirectional data flow in bursts. An automatic power down feature, controlled by CE0 and CE1, permits the on-chip circuitry of each IDT70V9189 to enter a very low standby power mode. Fabricated using IDT's CMOS high-performance technology, these devices typically operate on only 500mW of power.
