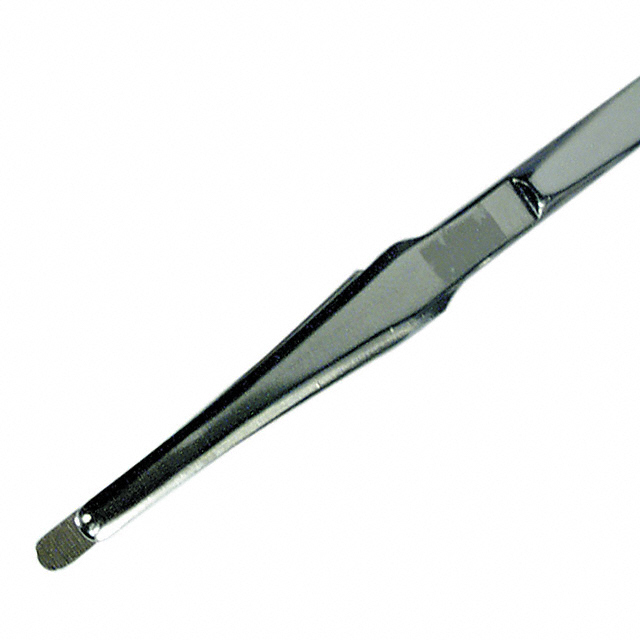

42141

Features: Acid Resistant, Anti-magnetic
Tip - Shape: Straight
Material: Stainless Steel
Series: -
Manufacturer: Wiha
Length - Overall: 4.70" (120mm)
Tip - Style: Cylindrical
Tip - Type: Barrel (Holding)
Holding Size: 0.8 ~ 2.0mm Dia
Pattern Number: 50


Features:

• Output noise typically less than 3v
• Output current up to 150 mA
• Input voltage up to 30V
• Internal short circuit protection, foldback and current limiting




Application

• Down hole oil exploration
• Military & high reliability applications where a hermetically sealed product for harsh environments is required




Specifications

Output Current (I_OUT) ..........................................................150mA
Input Voltage (V_IN) ............................................................ +30VDC
Operating Temperature (T_C)................................................. 200°C
Power Dissipation @ t_A = 25°C (Pd) .......................................1.0W




Description

This 42141 regulator is fabricated using hybrid techniques and will operate at temperatures up to 200°C. This device is complete with internal short circuit protection which includes voltage shutdown and current foldback. The new 42141 series regulator normally does not require any additional components. However, for good design practice, an external filter cap should be installed at the input, as close to the case as possible.
