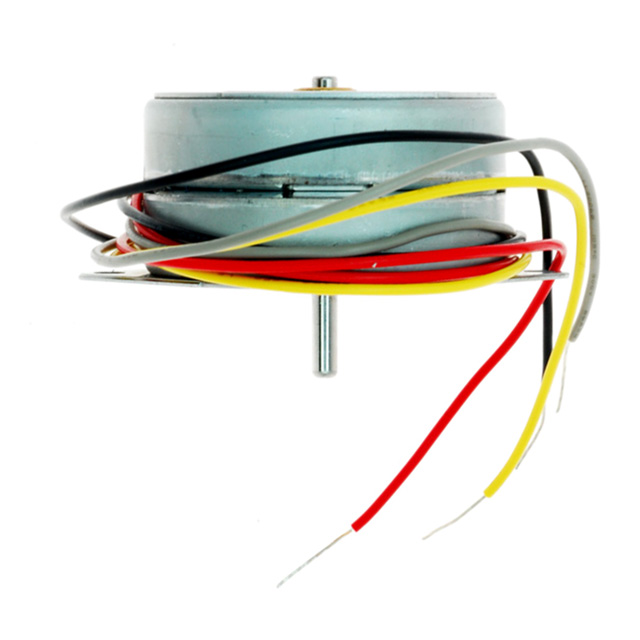

42M100B2U

42M Series Datasheet download

Five Points

Part Number: 42M100B2U

Category: Motors, Solenoids, Driver Boards/Modules

MFG: Portescap Danaher Motion US LLC





Descriptions: STEPPER MOTOR 12VDC 3.6DEG UNI

Price Break

1
10
50
100
250

Unit Price

21.30000
17.67700
14.16260
13.31070
12.77828

Extended Price

21.30
176.77
708.13
1331.07
3194.57

(All prices are in USD) Prices for reference only
Urgent Purchase

42M100B2U General Description

STEPPER MOTOR 12VDC 3.6DEG UNI

42M100B2U Parameters

Technical/Catalog Information42M100B2U
VendorPortescap Danaher Motion US LLC
CategoryMotors, Solenoids, Driver Boards/Modules
Voltage - Rated 12VDC
TypeStandard
Holding Torque (oz-in / mNm)7 / 49.4
Step Angle3.6°
Steps per Revolution100
Diameter - Body1.65" (42.01mm)
Diameter - Shaft0.118" (3.00mm)
Lead Length12.00" (304.80mm)
Mounting Hole Spacing1.95" (49.48mm)
Coil TypeUnipolar
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names 42M100B2U
42M100B2U
403 1013 ND
4031013ND
403-1013

42M100B2U datasheet


PDF/DataSheet Download

Find 42M100B2U Suppliers
