501503B00100: Heat Sinks TO-3 DIAM SHP BSKT 47.75 X 25.40

501503B00100 Data Sheet

Get Latest Price

Part Number:: 501503B00100
Mfg:: Aavid Thermalloy
Supply Ability:: 5000

Price Break

Qty
1~5000

Unit Price
Negotiable

Processing time
15 Days

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/4/28

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

501531-0410 evaluate
US $1.35 - 2 / Piece

Board to Board / Mezzanine Connectors .4MM 40P V PLUG 1.30MM STACK HGHT
50154 evaluate
US $1.49 - 1.81 / Piece

Switch Hardware 1.094 x .625 GRAY
501588-0804 evaluate
US $.95 - 1.11 / Piece

Memory Card Connectors 1.10MM MEMORY CARD PUSH-PUSH

Product Details

Quick Details

Product :	Heatsinks	Mounting Style :	SMD/SMT
Heatsink Material :	Aluminum	Thermal Resistance :	8.4 C / W
Length :	47.75 mm	Width :	35.56 mm
Height :	25.4 mm	Designed for :	TO-3

Description

Fin Style :
Product : Heatsinks
Heatsink Material : Aluminum
Mounting Style : SMD/SMT
Height : 25.4 mm
Designed for : TO-3
Width : 35.56 mm
Thermal Resistance : 8.4 C / W
Length : 47.75 mm

Pinout

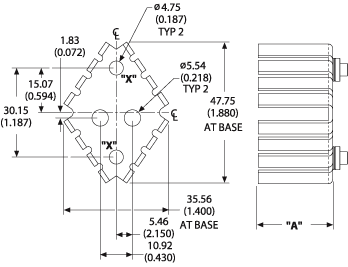

Connection Diagram

Specifications

Part #	Description	Finish	Board Mounting
501503B00100	Low cost diamond shaped basket heat sink with solderable mounts	Black Anodize	N/A
This non-electronic component is functionally unaffected by the normal soldering or reflow processes used for semiconductor circuits. The heat resistance time or heat resistance temperature is not applicable for the component.

Description

Thermal Resistance

8.40

Thermal resistance value of 501503B00100 is based on a 75C rise in natural convection

Parameters:

Technical/Catalog Information	501503B00100
Vendor	Aavid Thermalloy
Category	Thermal Management
Attachment Method	Bolt On
Height	1" (25.4mm)
Material	-
Package Cooled	TO-3
Power Dissipation @ Temperature Rise	5W @ 40°C
Thermal Resistance @ Forced Air Flow	4.0°C/W @ 200 LFM
Outline	47.75mm x 35.56mm
Thermal Resistance @ Natural	8.4°C/W
Lead Free Status	Contains Lead
RoHS Status	RoHS Non-Compliant
Other Names	501503B00100 501503B00100 HS269 ND HS269ND HS269
