505103B00000G: Heat Sinks TO-3 SQ BSKT B/A 45.21 X 12.70

505103B00000G Data Sheet

US $ 1.25~1.85 / Piece | Get Latest Price

Part Number:: 505103B00000G
Mfg:: Aavid Thermalloy
Supply Ability:: 5000

Price Break

Qty
0~165
165~500
500~1000
1000~2000

Unit Price
$1.85
$1.76
$1.48
$1.25

Processing time
15 Days
15 Days
15 Days
15 Days

View more price & deliveries

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/4/22

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

5051 evaluate
US $5.04 - 5.83 / Piece

Test Leads BNC FEMALE #8 LUG
50514 evaluate
US $20.72 - 24.28 / Piece

Enclosures, Boxes, & Cases 15 x 12 x 5" DEF 17 BLACK
50514-1120C evaluate
US $18.88 - 20.78 / Piece

Headers & Wire Housings 4 ROW VERTICAL HDR.,-PRESS FIT., 0 G.P.,6P.P.

Product Details

Quick Details

Product :	Heatsinks	Mounting Style :	SMD/SMT
Heatsink Material :	Aluminum	Fin Style :	Straight
Thermal Resistance :	10 C / W	Length :	45.21 mm
Width :	45.21 mm	Height :	12.7 mm
Designed for :	TO-3

Description

Product : Heatsinks
Heatsink Material : Aluminum
Fin Style : Straight
Mounting Style : SMD/SMT
Thermal Resistance : 10 C / W
Height : 12.7 mm
Designed for : TO-3
Length : 45.21 mm
Width : 45.21 mm

Pinout

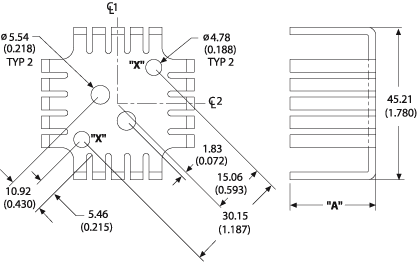

Connection Diagram

Specifications

Part #	Description	Finish	Board Mounting
505103B00000G	Square basket heat sink featuring straight fins	Black Anodize	N/A

Description

Thermal Resistance

10.00

Thermal resistance value of 505103B00000G is based on a 75C rise in natural convection

Parameters:

Technical/Catalog Information	505103B00000G
Vendor	Aavid Thermalloy
Category	Thermal Management
Attachment Method	Bolt On
Height	0.5" (12.7mm)
Material	Aluminum
Package Cooled	TO-3
Power Dissipation @ Temperature Rise	4W @ 40°C
Thermal Resistance @ Forced Air Flow	4.5°C/W @ 200 LFM
Outline	45.21mm x 45.21mm
Thermal Resistance @ Natural	10°C/W
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	505103B00000G 505103B00000G
