505303B00000G: Heat Sinks TO-3 SQ BSKT B/A 45.21 X 25.40

505303B00000G Data Sheet

US $ 2.13~2.13 / Piece | Get Latest Price

Part Number:: 505303B00000G
Mfg:: Aavid Thermalloy
Supply Ability:: 5000

Price Break

Qty
0~1670

Unit Price
$2.13

Processing time
15 Days

View more price & deliveries

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2025/12/6

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

5053-0005 evaluate
US $4.81 - 5.25 / Piece

RF Connectors
5053004040 evaluate
Heat Shrink Tubing & Sleeves RNF-100-1/8-RD-SP
5053054039 evaluate
Heat Shrink Tubing & Sleeves RNF-100-3/16-RD-SP

Product Details

Quick Details

Product :	Heatsinks	Mounting Style :	SMD/SMT
Heatsink Material :	Aluminum	Fin Style :	Straight
Thermal Resistance :	7.8 C / W	Length :	45.21 mm
Width :	45.21 mm	Height :	25.4 mm
Designed for :	TO-3

Description

Product : Heatsinks
Heatsink Material : Aluminum
Fin Style : Straight
Mounting Style : SMD/SMT
Height : 25.4 mm
Designed for : TO-3
Thermal Resistance : 7.8 C / W
Length : 45.21 mm
Width : 45.21 mm

Pinout

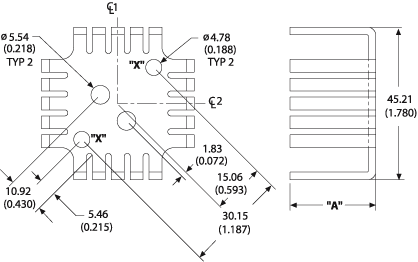

Connection Diagram

Specifications

Part #	Description	Finish	Board Mounting
505303B00000G	Square basket heat sink featuring straight fins	Black Anodize	N/A

Description

Thermal Resistance

7.80

Thermal resistance value of 505303B00000G is based on a 75C rise in natural convection

Parameters:

Technical/Catalog Information	505303B00000G
Vendor	Aavid Thermalloy
Category	Thermal Management
Attachment Method	Bolt On
Height	0.5" (12.7mm)
Material	Aluminum
Package Cooled	TO-3
Power Dissipation @ Temperature Rise	7W @ 60°C
Thermal Resistance @ Forced Air Flow	3.0°C/W @ 200 LFM
Outline	45.21mm x 45.21mm
Thermal Resistance @ Natural	7.8°C/W
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
