506003B00000G, US $ .66-.66, 506003B00000G DataSheet download, circuit diagram from SeekIC.com

See larger image

SeekIC No. : 003444187 Detail

506003B00000G: BOARD LEVEL HEAT SINK

506003B00000G Data Sheet

US $ .66~.66 / Piece | Get Latest Price

Part Number:: 506003B00000G
Mfg:
Supply Ability:: 5000

Price Break

Qty
0~6000

Unit Price
$.66

Processing time
15 Days

View more price & deliveries

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/4/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

5060 evaluate
INSTANT HAND SANITIZER
5060/15C SL001 evaluate
US $2605.32 - 2605.32 / Piece

CABLE 20AWG 15COND 1000' UNSHLD
5060/15C SL002 evaluate
US $2483.01 - 2611.44 / Piece

Multi-Conductor Cable 20AWG 15C UNSHLD 500ft SPOOL SLATE

Product Details

Quick Details

Capacitance :	16.5 pF	Series:	-
Manufacturer:	Aavid Thermalloy	Type:	Board Level
Package Cooled:	TO-3	Attachment Method:	Bolt On
Shape:	Rectangular	Length:	2.000" (50.80mm)
Width:	1.750" (44.45mm)	Diameter:	-
Height Off Base (Height of Fin):	0.375" (9.52mm)	Power Dissipation @ Temperature Rise:	16W @ 90°C
Thermal Resistance @ Forced Air Flow:	5.0°C/W @ 200 LFM	Thermal Resistance @ Natural:	7°C/W
Material:	Aluminum

Description

Type: Board Level
Attachment Method: Bolt On
Diameter: -
Material: Aluminum
Material Finish: Black Anodized
Series: -
Shape: Rectangular
Length: 2.000" (50.80mm)
Package Cooled: TO-3
Thermal Resistance @ Natural: 7°C/W
Height Off Base (Height of Fin): 0.375" (9.52mm)
Manufacturer: Aavid Thermalloy
Width: 1.750" (44.45mm)
Thermal Resistance @ Forced Air Flow: 5.0°C/W @ 200 LFM
Power Dissipation @ Temperature Rise: 16W @ 90°C

Pinout

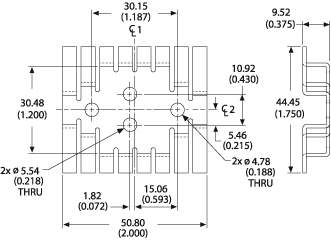

Connection Diagram

Specifications

Part #	Description	Finish	Board Mounting
506003B00000G	Low profile hat section heat sink	Black Anodize	N/A

Description

Thermal Resistance

7.00

Thermal resistance value of 506003B00000G is based on a 75C rise in natural convection

Parameters:

Technical/Catalog Information	506003B00000G
Vendor	Aavid Thermalloy
Category	Thermal Management
Attachment Method	Bolt On
Height	0.375" (9.53mm)
Material	Aluminum
Package Cooled	TO-3
Power Dissipation @ Temperature Rise	16W @ 90°C
Thermal Resistance @ Forced Air Flow	5.0°C/W @ 200 LFM
Outline	50.80mm x 44.45mm
Thermal Resistance @ Natural	7°C/W
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	506003B00000G 506003B00000G

Customers Who Bought This Item Also Bought

5060 - DIGITAL/ANALOG MEGOHMMETER 5000V, 10TOHM
US $$0.00 - 0.00 / Piece

Supply Ability:1936Month

View details
MASCOT5060 24/12VCONVERTER, DC/DC, 41W, 24/12V
US $$42.72 - 38.78 / Piece

Supply Ability:1898Month

View details
506007B00000G - HEAT SINK
US $$1.83 - 1.54 / Piece

Supply Ability:1095Month

View details
EMIT50604ARM, ADJUSTABLE, UNIVERSAL
US $$0.00 - 0.00 / Piece

Supply Ability:1477Month

View details
5060C SL005 - UNSHLD MULTICOND CABLE 10COND 20AWG 100FT
US $$442.40 - 388.56 / Piece

Supply Ability:1413Month

View details

Margin,quality,low-cost products with low minimum orders. Secure your online payments with SeekIC Buyer Protection.

506003B00000G

product image

floor Price/Ceiling Price

Price Break

Month Sales

Rating

Payment Methods

Recent History

Quick Details

Description

Customers Who Bought This Item Also Bought

Prototyping Products(332)

Integrated Circuits (ICs)(111140)

Test Equipment(3237)

Undefined Category(248)

Power Supplies - External/Internal (Off-Board)(631)

RF and RFID(1780)
