508500B00000G

Heat Sinks BLK HEAT SINK DIP-24

product image

508500B00000G Picture
See larger image
SeekIC No. : 002533732 Detail

508500B00000G: Heat Sinks BLK HEAT SINK DIP-24

508500B00000G Data Sheet

floor Price/Ceiling Price

US $ .34~.34 / Piece | Get Latest Price
Part Number:
508500B00000G
Mfg:
Aavid Thermalloy
Supply Ability:
5000

Price Break

  • Qty
  • 0~5880
  • Unit Price
  • $.34
  • Processing time
  • 15 Days
View more price & deliveries
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/18

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Product : Heatsinks Heatsink Material : Aluminum
Fin Style : Straight Thermal Resistance : 34 C / W
Length : 31.75 mm Width : 13.46 mm
Height : 4.83 mm Designed for : DIP-24

Description

Mounting Style :
Product : Heatsinks
Heatsink Material : Aluminum
Fin Style : Straight
Designed for : DIP-24
Thermal Resistance : 34 C / W
Length : 31.75 mm
Width : 13.46 mm
Height : 4.83 mm


Pinout

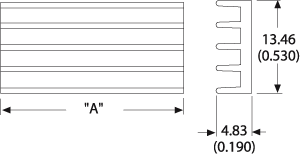

Connection Diagram


Specifications

Part # Description Finish Board Mounting
508500B00000G Extruded epoxy attach on heat sink with straight fins Black Anodize N/A



Description

Thermal Resistance 34.00

Thermal resistance value of 508500B00000G is based on a 75C rise in natural convection


Parameters:

Technical/Catalog Information508500B00000G
VendorAavid Thermalloy
CategoryFans, Thermal Management
Attachment MethodThermal Tape, Adhesive (Not Included)
Height0.190" (4.83mm)
MaterialAluminum
Package Cooled24-DIP
Power Dissipation @ Temperature Rise1W @ 40°C
Thermal Resistance @ Forced Air Flow15°C/W @ 500 LFM
Outline31.75mm x 13.46mm
Thermal Resistance @ Natural34°C/W
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names 508500B00000G
508500B00000G
HS273 ND
HS273ND
HS273
