Part Number: 513MLF

Description: LOCO PLL CLOCK GENERATOR The ICS513 is the most cost effective way to generate a high quality, high frequency clock output fro...

513MLF General Description

LOCO PLL CLOCK GENERATOR
The ICS513 is the most cost effective way to generate a high quality, high frequency clock output from a 14.31818 MHz crystal or clock input, and is designed to replace crystal oscillators in many electronic systems. Using Phase-Locked-Loop (PLL) techniques, the device uses a standard, inexpensive crystal to produce output clocks up to 100 MHz.

Packaged as 8-pin SOIC

Available in Pb (lead) free package

IDT's lowest cost PLL clock plus reference

Produces common computer frequencies

Input crystal frequency typically 14.3182 MHz

Output clock frequencies up to 100 MHz

Low jitter - 40 ps one sigma

Compatible with all popular CPUs

Duty cycle of 45/55

Custom frequencies available

Operating voltage of 3.3V to 5V

Power down mode turns off chip

25mA drive capability at TTL levels

Advanced, low-power CMOS process

513MLF Maximum Ratings

Input Frequency 14.31818 MHz No. of Inputs 1 Temperature C Output Frequency REF,24 MHz,48 MHz,100 MHz,3.6864 MHz Input Type Clock,Crystal No. of Outputs 2 Output Type CMOS Voltage 3.3 V Package SOIC 8 Speed NA Core Supply Voltage (VDD) 3.3 V to 5 V Output Supply Voltage (VDDO) 3.3 V to 5 V Peak-to-Peak Period Jitter ± 140 ps Pk-to-Pk Output Style SE Input Style Crystal Temp. Grade C

513MLF datasheet

5134
PDF/DataSheet Download

Datasheet: 5134
File Size: 407268 KB
Manufacturer:
Click here to Download

·513AA
ON SEMICONDUCTOR
PACKAGE DIMENSIONS
41994 KB

Related Part Number

513MLF Relative Products

513M
LOCO PLL CLOCK GENERATORThe 513M is the most cost effective way to generate a high quality, high frequency clock output from a 14.31818 MHz crystal or clock input, and is designed to replace crystal oscillators in many electronic systems. Using Phase-Locked-...
513LP5E
The HMC513LP5 & HMC513LP5E are GaAs InGaP eterojunction Bipolar Transistor (HBT) MMIC COs. The HMC513LP5 & HMC513LP5E integrate esonators, negative resistance devices, varactor iodes and feature half frequency and divide-by- outputs. The VCO's phase ...
513-D
CONN IDC BLOCK FOR D SUB
513-C
CONN IDC BLOCK FOR D SUB
513-B
CONN IDC BLOCK FOR D SUB
513-A

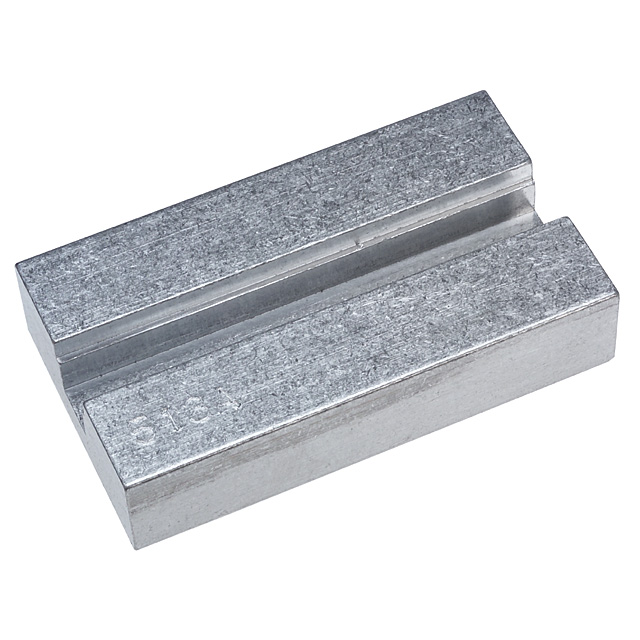

BASE PLATE D-SUB IDC
