529801B02100G: Heat Sinks EXTR Lg. Radial Fins TO-218 38.1mm Vert

529801B02100G Data Sheet

US $ 1.65~1.7 / Piece | Get Latest Price

Part Number:: 529801B02100G
Mfg:: Aavid Thermalloy
Supply Ability:: 5000

Price Break

Qty
0~1080
1080~1500

Unit Price
$1.7
$1.65

Processing time
15 Days
15 Days

View more price & deliveries

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2025/12/25

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

5298 evaluate
US $19.02 - 21.7 / Piece

RF Adapters - Between Series BNC TRIAX 2 LUG
529801B00000 evaluate
US $1.3 - 1.33 / Piece

Heat Sinks EXTR Lg. Radial Fins TO-218 38.1mm Vert
529801B00000G evaluate
PinoutSpecifications Part# Description Finish Board Mounting 529801B00000G Ext...

Product Details

Description

Product :
Mounting Style :
Heatsink Material :
Fin Style :
Thermal Resistance :
Length :
Width :
Height :
Designed for :

Pinout

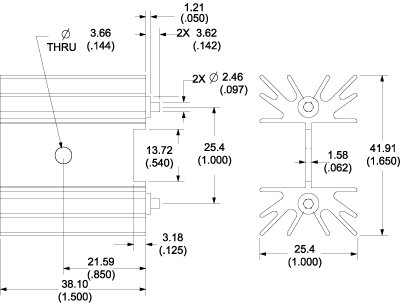

Connection Diagram

Specifications

Part #	Description	Finish	Board Mounting
529801B02100G	Extruded heat sink with large radial fins and solderable mounting pins	Black Anodize	View Hole Dimensions
This non-electronic component is functionally unaffected by the normal soldering or reflow processes used for semiconductor circuits. The heat resistance time or heat resistance temperature is not applicable for the component.

Description

Thermal Resistance

5.00

Thermal resistance value of 529801B02100G is based on a 75C rise in natural convection

Parameters:

Technical/Catalog Information	529801B02100G
Vendor	Aavid Thermalloy
Category	Thermal Management
Attachment Method	Bolt On and PC Pin
Height	1" (25.4mm)
Material	Aluminum
Package Cooled	TO-218
Power Dissipation @ Temperature Rise	5W @ 30°C
Thermal Resistance @ Forced Air Flow	3.0°C/W @ 200 LFM
Outline	41.91mm x 38.10mm
Thermal Resistance @ Natural	5°C/W
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	529801B02100G 529801B02100G
