SeekIC No. : 002533809 Detail

530801B05150G: Heat Sinks HIGH RISE TO-218/247 44.45mm VERT BLK

530801B05150G Data Sheet

US $ 4.2~4.66 / Piece | Get Latest Price

Part Number:: 530801B05150G
Mfg:: Aavid Thermalloy
Supply Ability:: 5000

Price Break

Qty
0~750
750~1000
1000~1500

Unit Price
$4.66
$4.31
$4.2

Processing time
15 Days
15 Days
15 Days

View more price & deliveries

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2025/12/19

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

5308 507 evaluate
Cable Mounting & Accessories PG7 Cord Grip, 2.5-6.5mmCable Dia., Black
5308 509 evaluate
US $.32 - .39 / Piece

Cable Mounting & Accessories PG9 Cord Grip 2.5-8mmCab
5308 511 evaluate
US $.43 - .43 / Piece

Cable Mounting & Accessories PG11 Cord Grip 3.5-10mm BLK

Product Details

Description

Product :
Mounting Style :
Heatsink Material :
Fin Style :
Thermal Resistance :
Length :
Width :
Height :
Designed for :

Pinout

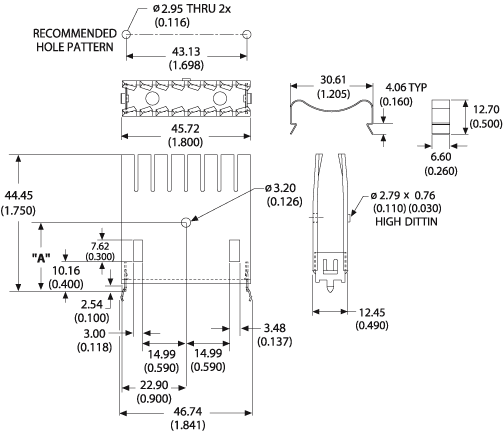

Connection Diagram

Specifications

Part #	Description	Finish	Board Mounting
530801B05150G	High rise style heat sink features twisted fins and solderable tabs and device clip	Black Anodize	View Hole Dimensions
This non-electronic component is functionally unaffected by the normal soldering or reflow processes used for semiconductor circuits. The heat resistance time or heat resistance temperature is not applicable for the component.

Description

Thermal Resistance

6.30

Thermal resistance value of 530801B05150G is based on a 75C rise in natural convection

Parameters:

Technical/Catalog Information	530801B05150G
Vendor	Aavid Thermalloy
Category	Thermal Management
Attachment Method	Clip and PC Pin
Height	1.75" (44.45mm)
Material	Aluminum
Package Cooled	TO-218
Power Dissipation @ Temperature Rise	4W @ 30°C
Thermal Resistance @ Forced Air Flow	1°C/W @ 700 LFM
Outline	45.72mm x 12.45mm
Thermal Resistance @ Natural	6.3°C/W
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	530801B05150G 530801B05150G
