530802B05150G

Diameter: -
Material: Aluminum
Material Finish: Black Anodized
Series: -
Shape: Rectangular
Type: Board Level, Vertical
Package Cooled: TO-220
Attachment Method: Clip and PC Pin
Manufacturer: Aavid Thermalloy
Power Dissipation @ Temperature Rise: 4W @ 30°C
Width: 0.490" (12.44mm)
Height Off Base (Height of Fin): 1.750" (44.45mm)
Thermal Resistance @ Natural: 6.3°C/W
Thermal Resistance @ Forced Air Flow: 1°C/W @ 700 LFM
Length: 1.840" (46.74mm)


Pinout




Specifications

Part #	Description	Finish	Board Mounting

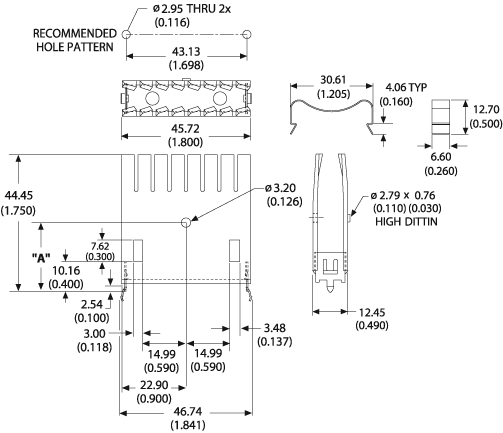

530802B05150G	High rise style heat sink features twisted fins and solderable tabs and device clip	Black Anodize	View Hole Dimensions
This non-electronic component is functionally unaffected by the normal soldering or reflow processes used for semiconductor circuits. The heat resistance time or heat resistance temperature is not applicable for the component.

Description

Thermal Resistance

6.30

Thermal resistance value of 530802B05150G is based on a 75C rise in natural convection


Parameters:

Technical/Catalog Information	530802B05150G
Vendor	Aavid Thermalloy
Category	Thermal Management
Attachment Method	Clip and PC Pin
Height	1.75" (44.45mm)
Material	Aluminum
Package Cooled	TO-220
Power Dissipation @ Temperature Rise	4W @ 30°C
Thermal Resistance @ Forced Air Flow	1°C/W @ 700 LFM
Outline	45.72mm x 12.45mm
Thermal Resistance @ Natural	6.3°C/W
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	530802B05150G 530802B05150G
