531302C02500

POWER COOLER 2.5" GOLD W/PIN

product image

531302C02500 Picture
See larger image
SeekIC No. : 004232749 Detail

531302C02500: POWER COOLER 2.5" GOLD W/PIN

531302C02500 Data Sheet

floor Price/Ceiling Price

US $ .53~.94 / Piece | Get Latest Price
Part Number:
531302C02500
Mfg:
Aavid Thermalloy
Supply Ability:
5000

Price Break

  • Qty
  • 1~10
  • 10~100
  • 100~500
  • 500~1000
  • 1000~5000
  • Unit Price
  • $.94
  • $.73
  • $.62
  • $.58
  • $.53
  • Processing time
  • 15 Days
  • 15 Days
  • 15 Days
  • 15 Days
  • 15 Days
View more price & deliveries
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/25

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Pinout

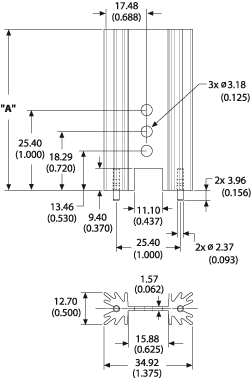

Connection Diagram


Specifications

Part # Description Finish Board Mounting
531302C02500 Extruded heat sink with radial fins and notched base and solderable pins Gold Chromate N/A
This non-electronic component is functionally unaffected by the normal soldering or reflow processes used for semiconductor circuits. The heat resistance time or heat resistance temperature is not applicable for the component.




Description

Thermal Resistance 8.00

Thermal resistance value of 531302C02500 is based on a 75C rise in natural convection


Parameters:

Technical/Catalog Information531302C02500
VendorAavid Thermalloy
CategoryThermal Management
Attachment MethodBolt On and PC Pin
Height2.5" (63.5mm)
MaterialAluminum
Package CooledTO-220, TO-202
Power Dissipation @ Temperature Rise6W @ 40°C
Thermal Resistance @ Forced Air Flow4°C/W @ 500 LFM
Outline34.92mm x 12.70mm
Thermal Resistance @ Natural8°C/W
Lead Free StatusContains Lead
RoHS StatusRoHS Non-Compliant
Other Names 531302C02500
531302C02500
HS133 P ND
HS133PND
HS133-P
