5325F7

LED Circuit Board Indicators YELLOW DIFFUSED

product image

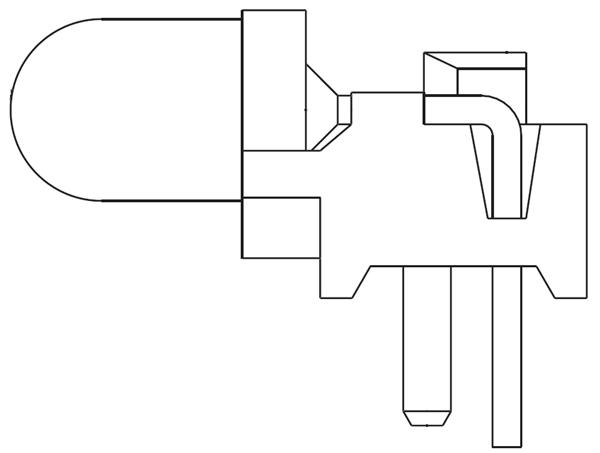

5325F7 Picture
SeekIC No. : 0027052 Detail

5325F7: LED Circuit Board Indicators YELLOW DIFFUSED

floor Price/Ceiling Price

US $ .26~.37 / Piece | Get Latest Price
Part Number:
5325F7
Mfg:
Chicago Miniature
Supply Ability:
5000

Price Break

  • Qty
  • 0~1
  • 1~25
  • 25~100
  • 100~500
  • Unit Price
  • $.37
  • $.34
  • $.3
  • $.26
  • Processing time
  • 15 Days
  • 15 Days
  • 15 Days
  • 15 Days
View more price & deliveries
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/3/27

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

LED Size : 3 mm Illumination Color : Yellow
Lens Color/Style : Tinted, Diffused Wavelength : 583 nm
Luminous Intensity : 10 mcd Mounting Type : Through Hole
Viewing Angle : 55 deg Packaging : Bulk

Description

LED Size : 3 mm
Mounting Type : Through Hole
Lens Color/Style : Tinted, Diffused
Luminous Intensity : 10 mcd
Packaging : Bulk
Illumination Color : Yellow
Viewing Angle : 55 deg
Wavelength : 583 nm


Pinout




Specifications

Part Number: 5325F7
Serial Number: 5325F
Emitted color: Yellow
Lens color: Yellow
Lum in min (mcd): 3.6
Lum in typ (mcd): 10
Rated current (mA): 10.0
Cont forward current max: 30.0
Fwd volts type: 2.1
Forward volt max.: 3.0
Reverse breakdown V: 5
Viewing angle (°): 55
Peak wave length (mA): 585
Housing type: UL94V-0
RoHS Status: Yes


Description

CML LED assemblies 5325F7 are available in both right angle and vertical package and utilize the CML IT line of high quality LEDs. Parts range in voltage from 2V to 12V and in current from 2mA to 20mA. The UL94V0 housings ensure proper LED alignment.


Parameters:

Technical/Catalog Information5325F7
VendorCML Innovative Technologies Inc
CategoryOptoelectronics
ColorYellow
Mounting TypeThrough Hole, Right Angle
ConfigurationSingle
Voltage Rating2.2V
Current 10mA
Lens Style/SizeRound, 3mm, T-1
PackagingBulk
Lens TypeDiffused, Yellow Tinted
RoHS StatusRoHS Compliant
Other Names 5325F7
5325F7
