532702B02500G

Heat Sinks TO-220 VERT HEAT SNK

product image

532702B02500G Picture
See larger image
SeekIC No. : 002533705 Detail

532702B02500G: Heat Sinks TO-220 VERT HEAT SNK

532702B02500G Data Sheet

floor Price/Ceiling Price

US $ .89~.89 / Piece | Get Latest Price
Part Number:
532702B02500G
Mfg:
Aavid Thermalloy
Supply Ability:
5000

Price Break

  • Qty
  • 0~2020
  • Unit Price
  • $.89
  • Processing time
  • 15 Days
View more price & deliveries
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/6

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Product : Heatsinks Mounting Style : Through Hole
Heatsink Material : Aluminum Fin Style : Radial
Thermal Resistance : 4.8 C / W Length : 12.7 mm
Width : 41.91 mm Height : 50.8 mm
Designed for : TO-220

Description

Product : Heatsinks
Heatsink Material : Aluminum
Mounting Style : Through Hole
Designed for : TO-220
Height : 50.8 mm
Thermal Resistance : 4.8 C / W
Length : 12.7 mm
Fin Style : Radial
Width : 41.91 mm


Pinout

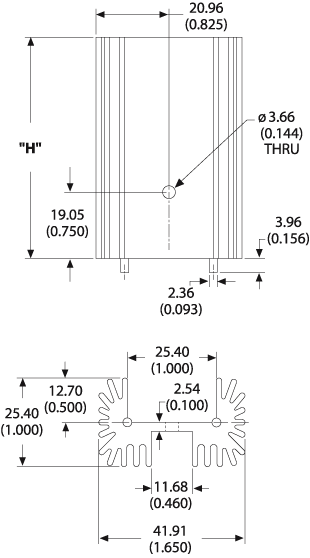

Connection Diagram


Specifications

Part # Description Finish Board Mounting
532702B02500G High power extruded Heatsink with large radial fins and straight pins Black Anodize View Hole Dimensions
This non-electronic component is functionally unaffected by the normal soldering or reflow processes used for semiconductor circuits. The heat resistance time or heat resistance temperature is not applicable for the component.




Description

Thermal Resistance 4.80

Thermal resistance value of 532702B02500G is based on a 75C rise in natural convection


Parameters:

Technical/Catalog Information532702B02500G
VendorAavid Thermalloy
CategoryThermal Management
Attachment MethodBolt On and PC Pin
Height2" (50.8mm)
MaterialAluminum
Package CooledTO-220
Power Dissipation @ Temperature Rise10W @ 50°C
Thermal Resistance @ Forced Air Flow2.0°C/W @ 300 LFM
Outline41.91mm x 25.40mm
Thermal Resistance @ Natural4.8°C/W
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names 532702B02500G
532702B02500G
