533001B02551G

Diameter: -
Material: Aluminum
Material Finish: Black Anodized
Series: -
Shape: Rectangular
Type: Board Level, Vertical
Height Off Base (Height of Fin): 0.500" (12.70mm)
Thermal Resistance @ Natural: 13°C/W
Attachment Method: Clip and PC Pin
Manufacturer: Aavid Thermalloy
Length: 1.00" (25.40mm)
Width: 1.375" (34.93mm)
Power Dissipation @ Temperature Rise: 2W @ 30°C
Thermal Resistance @ Forced Air Flow: 4°C/W @ 400 LFM
Package Cooled: TO-218, TO-247

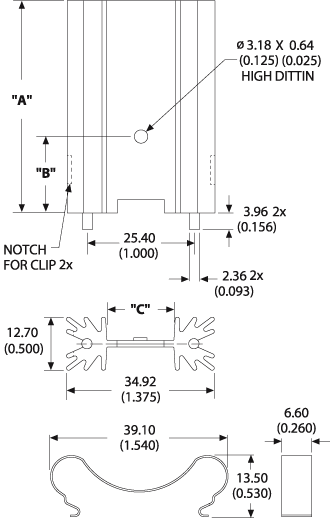

Pinout




Specifications

Part #	Description	Finish	Board Mounting
533001B02551G	Extruded heat sink with radial fins and solderable pins and device clip	Black Anodize	N/A
This non-electronic component is functionally unaffected by the normal soldering or reflow processes used for semiconductor circuits. The heat resistance time or heat resistance temperature is not applicable for the component.

Description

Thermal Resistance

13.00

Thermal resistance value of 533001B02551G is based on a 75C rise in natural convection


Parameters:

Technical/Catalog Information	533001B02551G
Vendor	Aavid Thermalloy
Category	Thermal Management
Attachment Method	Clip and PC Pin
Height	1" (25.4mm)
Material	Aluminum
Package Cooled	TO-218, TO-247
Power Dissipation @ Temperature Rise	2W @ 30°C
Thermal Resistance @ Forced Air Flow	4°C/W @ 400 LFM
Outline	34.92mm x 12.70mm
Thermal Resistance @ Natural	13°C/W
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	533001B02551G 533001B02551G
