54AC04

Features: `ICC reduced by 50% on 54AC only`Outputs source/sink 24 mA`'ACT04 has TTL-compatible inputs`Standard Military Drawing (SMD)- 'AC04: 596287609`For Military 54ACT04 device see 54ACTQ04PinoutSpecificationsIf Military/Aerospace specified devices are required, please contact the National Semi...

product image

54AC04 Picture
See larger image
SeekIC No. : 004233038 Detail

54AC04: Features: `ICC reduced by 50% on 54AC only`Outputs source/sink 24 mA`'ACT04 has TTL-compatible inputs`Standard Military Drawing (SMD)- 'AC04: 596287609`For Military 54ACT04 device see 54ACTQ04Pinout...

54AC04 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
54AC04
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/6

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

`ICC reduced by 50% on 54AC only
`Outputs source/sink 24 mA
`'ACT04 has TTL-compatible inputs
`Standard Military Drawing (SMD)
- 'AC04: 596287609
`For Military 54ACT04 device see 54ACTQ04

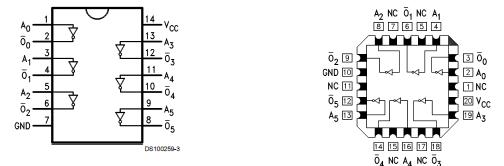

Pinout






Specifications

If Military/Aerospace specified devices are required, please contact the National Semiconductor Sales Office/ Distributors for availability and specifications.

Supply Voltage (VCC)..... -0.5V to +7.0V
DC Input Diode Current (IIK)
VI = -0.5V ...............-20 mA
VI = VCC + 0.5V ............+20 mA
DC Input Voltage (VI) ...-0.5V to VCC + 0.5V
DC Output Diode Current (IOK)
VO = -0.5V.............. .-20 mA
VO = VCC + 0.5V............ +20 mA
DC Output Voltage (VO).-0.5V to to VCC + 0.5V
DC Output Source
or Sink Current (IO) ..........±50 mA
DC VCC or Ground Current
per Output Pin (ICC or IGND) ......±50 mA

Note 1: Absolute maximum ratings are those values beyond which damage to the device may occur. The databook specifications should be met, without exception, to ensure that the system design is reliable over its power supply,temperature, and output/input loading variables. National does not recommend operation of FACT® circuits outside databook specifications.



Temperature Min -55 deg C
Temperature Max 125 deg C
View Using Catalog





Description

The 54AC04 contains six inverters.

The 54AC04 contains six inverters.

Application Notes

Title Size in Kbytes Date
AN-925: Radiation Design Test Data for Advanced CMOS Product 194 Kbytes 5-Aug-95 Download

If you have trouble printing or viewing PDF file(s), see Printing Problems.

More Application Notes

Title Size in Kbytes Date
AN-926: Radiation Design Considerations Using CMOS Logic 130 Kbytes 5-Aug-95 Download

If you have trouble printing or viewing PDF file(s), see Printing Problems.
